StatusDef Table (198)
•
Environment: onsite, online
Some tooltip text!
• 3 minutes to read
• 3 minutes to read
Status definitions. Name and description are in LocaleText for internationalization
Fields
| Name | Description | Type | Null |
|---|---|---|---|
| StatusDef_id | Primary key | PK | |
| isVisual | Should the status be visualized (active) in the client | Bool | ● |
| needsUpdate | Is the definition dirty, ie., ALL values are invalid until a recalculation; this flag is set when the status DEFINITION is changed, as opposed to the flag on StatusValue | Bool | ● |
| rank | Priority rank, in case more than one status is signalled. Lowest wins | UShort | ● |
| deleted | Deleted flag, 1 if this record is deleted (never from the database) | Bool | ● |
| ownerTable | The owning entity, currently contact or project | TableNumber | ● |
| dirtyOnChange | If 1, the statusValue records should be set to dirty whenever information related to the owning entity changes. If 0, nothing happens. | Bool | ● |
| defaultTask | Default task type for this status; the default task text is in the text table (since it can be long), and may contain template variables | FK Task | ● |
| lastGenerated | When was the last generation finished (i.e., statusValue rows created) | DateTime | ● |
| numMatches | Number of targets that have this status, this should be the number of rows in StatusValue pointing to this definition, and that have isSignalled set to 1 | UInt | ● |
| numNeedUpdate | Number of targets that had this status, but have their needsUpdate bit set due to some change | UInt | ● |
| registered | Registered when | UtcDateTime | |
| registered_associate_id | Registered by whom | FK associate | |
| updated | Last updated when | UtcDateTime | |
| updated_associate_id | Last updated by whom | FK associate | |
| updatedCount | Number of updates made to this record | UShort | |
| generationStart | When was the last regeneration started | DateTime | ● |
Indexes
| Fields | Types | Description |
|---|---|---|
| StatusDef_id | PK | Clustered, Unique |

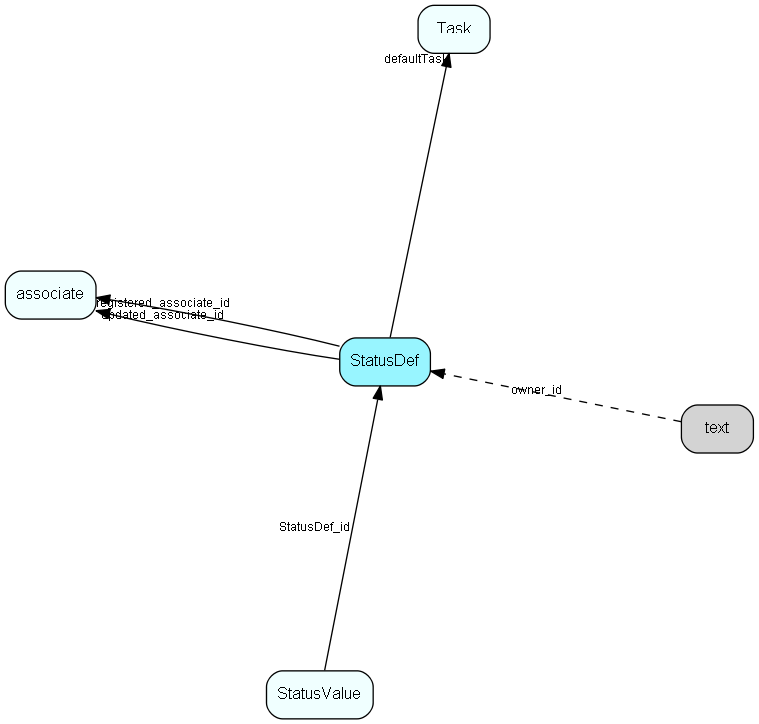

Relationships
| Table | Description |
|---|---|
| associate | Employees, resources and other users - except for External persons |
| StatusValue | Values for statuses |
| Task | Task list table, activity types, like Phone, Meeting |
| text | Long text fields from all over the system |
Replication Flags
- Replicate changes DOWN from central to satellites and travellers.
- Replicate changes UP from satellites and travellers back to central.
- Copy to satellite and travel prototypes.
Security Flags
- No access control via user's Role.
