s_shipment Table (334)
•
Environment: onsite, online
Some tooltip text!
• 6 minutes to read
• 6 minutes to read
Contains info about one shipment. The addresses are stored in s_shipment_addr
Fields
| Name | Description | Type | Null |
|---|---|---|---|
| id | Primary key | PK | |
| description | Describes the shipment | String(255) | ● |
| message_id | The id of the message that is sent in this shipment | FK s_message | |
| start_date | The date and time when to start this shipment | DateTime | ● |
| end_date | Is set when this shipment is ended | DateTime | ● |
| from_addr | Email address to put in the From header of the messages | String(255) | |
| reply_addr | Email address to put in the Reply To: header of the messages | String(255) | ● |
| envelope_from | Email address for the MTA envelope (where bounces are returned) | String(255) | ● |
| smtp_serv | The server to use for this shipment. | String(255) | ● |
| smtp_port | The port of the SMTP server to use for this shipment. | Int | |
| send_rate | Maximum number of messages sent per minute. | Int | |
| status | Sending/stopped/failed etc. | Enum ShipmentStatus | |
| recipients | The total number of recipients to send message to. | Int | |
| actual_rate | The actual rate of messages per minute. can be lower than send_rate | Int | |
| actual_time | The time of the last checkpoint | DateTime | ● |
| actual_count | Number of emails sent at the last checkpoint | Int | |
| current_sender | Timestamp to identify which ejsender that owns this shipment | Int | ● |
| ticket_owner | The owner of the ticket if any is created while sending out a shipment. -1 if no ticket should be automatically delegated, 1 if the ticket is unassigned, >1 for all others | Int | ● |
| ticket_category | The category of tickets created while sending out if any. -1 if no ticket should be created | Int | ● |
| flags | Various flags for a shipment | UInt | ● |
| folder_id | The folder which this shipment belongs to. -1 indicates that the shipment is on the root | Int | |
| configuration | This field indicates what kind of shipment this is. | Int | |
| selection_id | Set if this shipment should be related to a Selection | FK selection | ● |
| project_id | Set if this shipment should be related to a Project | FK project | ● |
| generated_document_id | ID of the merged document that is the result of the shipment | FK document | ● |
| registered | Registered when | UtcDateTime | ● |
| registered_associate_id | Registered by whom | FK associate | ● |
| updated | Last updated when | UtcDateTime | ● |
| updated_associate_id | Last updated by whom | FK associate | ● |
| updatedCount | Number of updates made to this record | UShort | ● |
| active_pane | The currently active pane in the mailing wizard | Int | ● |
| sorting | Which sorting should be used on the document mailing recipient list, used when generating PDF | Enum RecipientSorting | |
| delivered_num | Number of mails sent minus bounces | Int | ● |
| open_num | Number of opened emails count | Int | ● |
| open_rate | Open rate % (open_num / delivered_num) | Double | ● |
| click_num | Number of links clicked | Int | ● |
| click_rate | Click rate % (click_num / delivered_num) | Double | ● |
| hardbounce_num | Number of hard bounces | Int | ● |
| hardbounce_rate | Hard bounce rate % (hardbounce_num / number_transmitted) | Double | ● |
| softbounce_num | Number of soft bounces | Int | ● |
| softbounce_rate | Soft bounce rate % (softbounce_num / number_transmitted) | Double | ● |
| totalbounce_num | Total number of bounces | Int | ● |
| totalbounce_rate | Total bounce rate % (totalbounce_num / number_transmitted) | Double | ● |
| are_statistics_dirty | Indicates if shipment needs statistics calculation, set by code that changes the shipment or receives clicks/opens | Bool | |
| sent_num | Number of mails sent | Int | ● |
| shipmenttype_id | Id of subscriptionType that this shipment has, so we may check for reservations | FK ShipmentType | ● |
Indexes
| Fields | Types | Description |
|---|---|---|
| id | PK | Clustered, Unique |
| message_id | FK | Index |
| are_statistics_dirty, id | Bool, PK | Index |

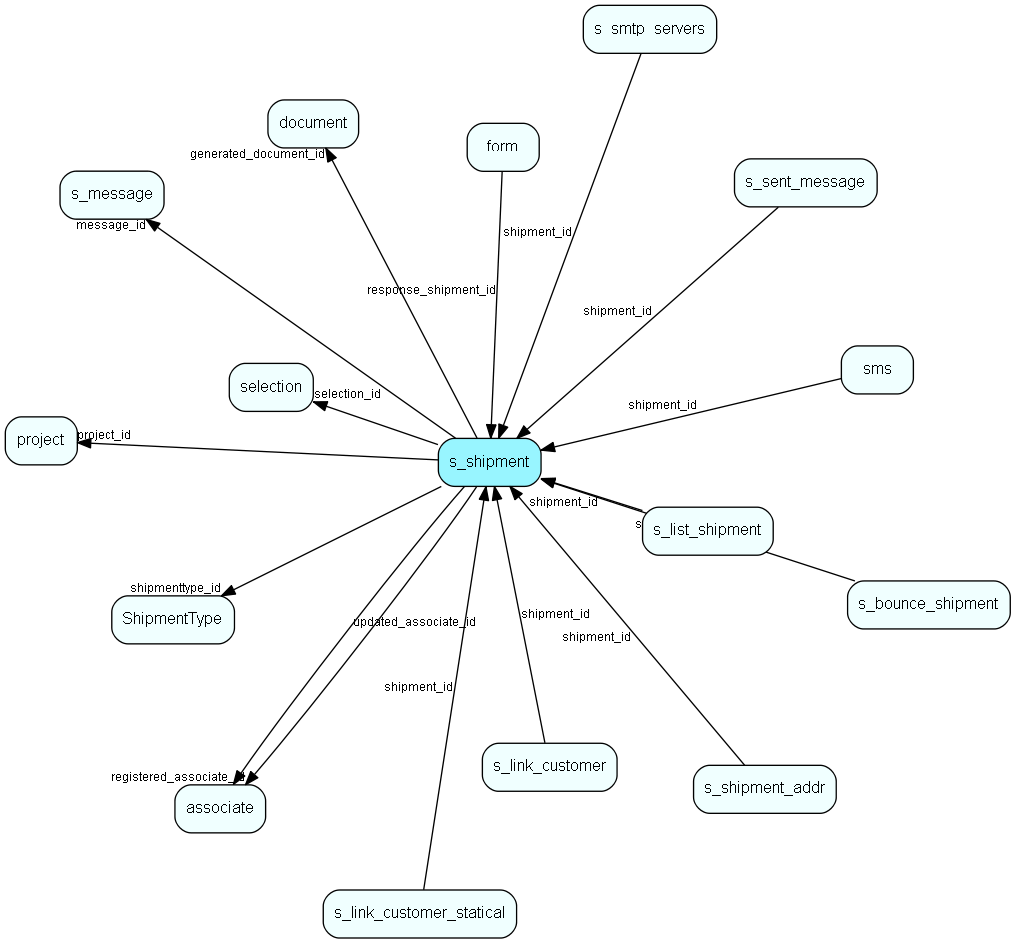

Relationships
| Table | Description |
|---|---|
| associate | Employees, resources and other users - except for External persons |
| document | Documents, this table is an extension of the Appointment table. There is always a corresponding appointment record; the relation between appointment and document is navigable in both directions. A document-type appointment record always has a corresponding document record and a record in VisibleFor specifying who may see this. |
| form | A form which can be published on a webpage and submitted by visitors |
| project | Projects |
| s_bounce_shipment | Email bounces from customers |
| s_link_customer | A connection between a customer and a link. Registered customers are identified when clicking on a link |
| s_link_customer_statical | A connection between a customer and a link. Registered customers are identified when clicking on a link |
| s_list_shipment | A connector between shipment and list so that one shipment can have many lists, and one list can have many shipments |
| s_message | A message used in a shipment. Can be html and/or plain text |
| s_sent_message | Emarketeer message control |
| s_shipment_addr | Addresses that are ready to be sent in a shipment. |
| s_smtp_servers | Contains the smtp server for a shipment |
| selection | Selections |
| ShipmentType | Shipment type list table. Classification of a mailing, allowing recipients to subscribe to lists |
| sms | This table will hold outgoing sms messages when transmitted with WebServices |
Replication Flags
- None
Security Flags
- No access control via user's Role.
