ShipmentType Table (500)

•
Environment: onsite, online
• 2 minutes to read
 • 2 minutes to read

Shipment type list table. Classification of a mailing, allowing recipients to subscribe to lists

Fields

Name Description Type Null
ShipmentType_id Primary key PK
name The list item String(4000)
tooltip The tooltip for the list item String(4000) ●
rank Rank order UShort ●
deleted 0 -> record is active 1 -> record is 'deleted' and should not be shown in lists UShort ●
registered Registered when UtcDateTime
registered_associate_id Registered by whom FK associate
updated Last updated when UtcDateTime
updated_associate_id Last updated by whom FK associate
updatedCount Number of updates made to this record UShort

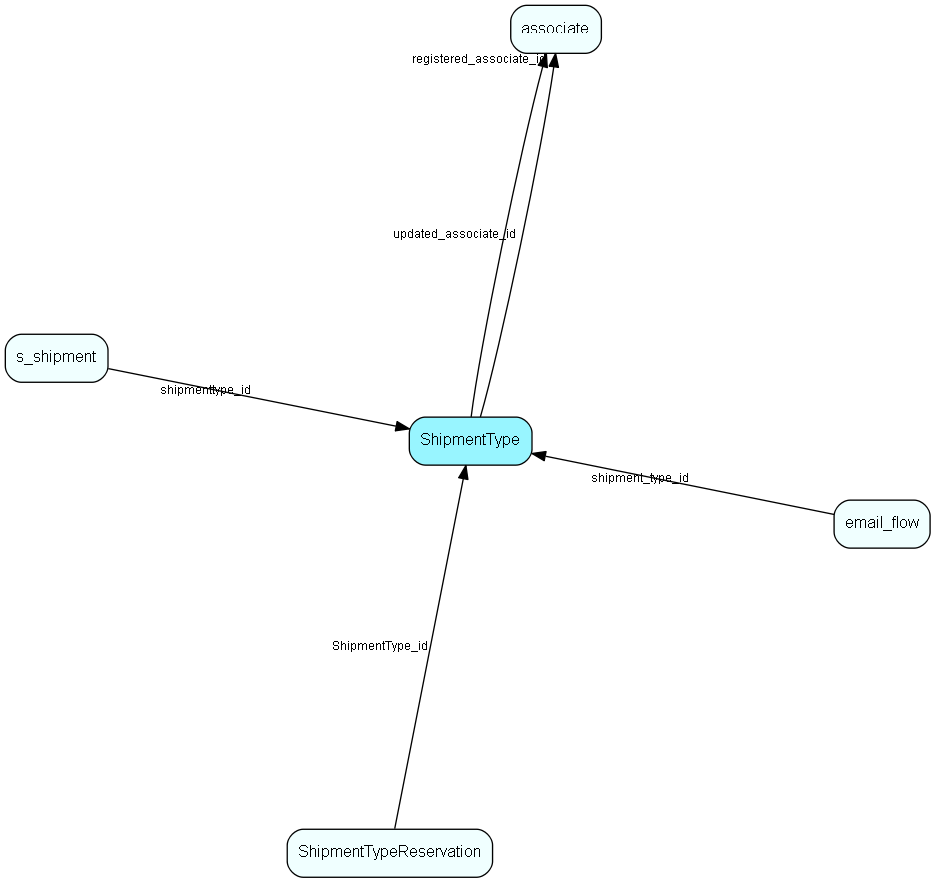

ShipmentType table relationship diagram

Indexes

Fields Types Description
ShipmentType_id PK Clustered, Unique

Relationships

Table Description
associate Employees, resources and other users - except for External persons
email_flow A set of properties related to the email workflow.
s_shipment Contains info about one shipment. The addresses are stored in s_shipment_addr
ShipmentTypeReservation ShipmentTypes a person has reserved against. Note that the absense of a record here implies acceptance of a mailings of this type

Replication Flags

  • Replicate changes DOWN from central to satellites and travellers.
  • Replicate changes UP from satellites and travellers back to central.
  • Copy to satellite and travel prototypes.

Security Flags

  • No access control via user's Role.
