dashboard Table (479)

•
Environment: onsite, online
• 2 minutes to read
 • 2 minutes to read

Describes a dashboard

Fields

Name Description Type Null
dashboard_id Primary key PK
associate_id Associate who owns this dashboard FK associate ●
name The name of this dashboard String(4000) ●
description Detailed description String(4000) ●
dashboard_theme_id The theme belongs to set of slyle rules for the dashboard FK dashboard_theme ●
registered Registered when UtcDateTime
registered_associate_id Registered by whom FK associate
updated Last updated when UtcDateTime
updated_associate_id Last updated by whom FK associate
updatedCount Number of updates made to this record UShort
visible_for_all True if visible for all Bool ●
visible_for_associates Array of references to the visible for associates FKArray ●
visible_for_groups Array of references to the visible for groups FKArray ●
pin_for_all True if pinned for all Bool ●
pin_for_associates Array of references to the pinned associates FKArray ●
pin_for_groups Array of references to the pinned groups FKArray ●
columns How many columns there will be in the dashboard. Int ●
guid GUID identifying a default dashboard from SuperOffice String(36) ●

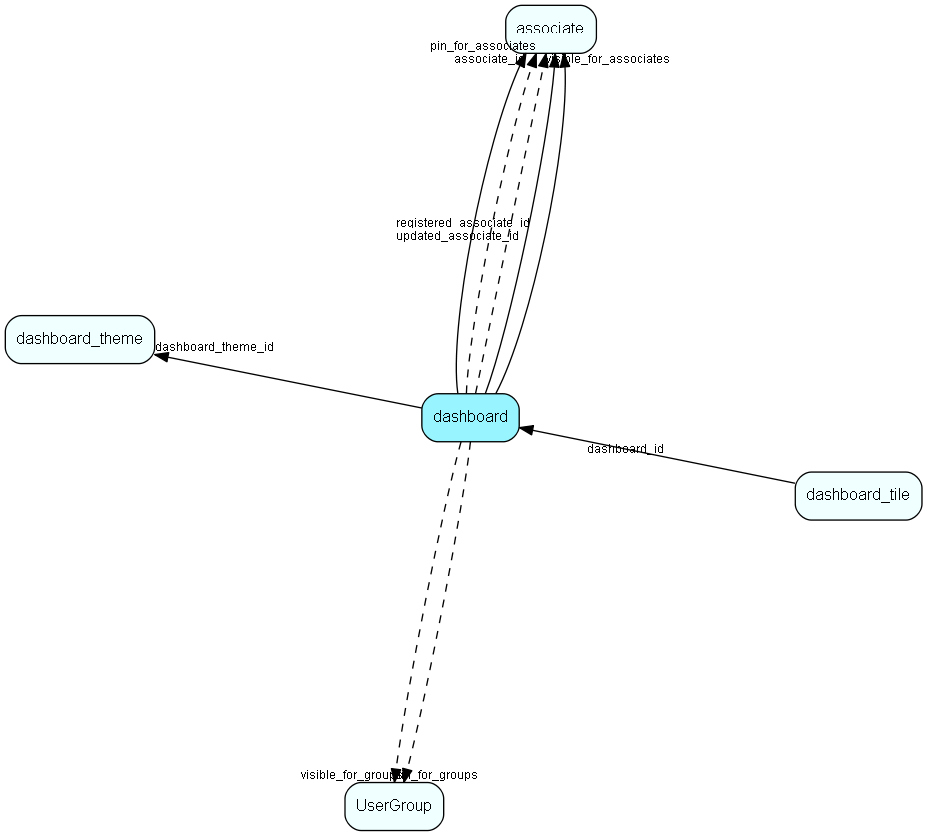

dashboard table relationship diagram

Indexes

Fields Types Description
dashboard_id PK Clustered, Unique
associate_id FK Index

Relationships

Table Description
associate Employees, resources and other users - except for External persons
dashboard_theme A set of style rules for the Dashboard
dashboard_tile Represents one tile in the dashboard
quick_filter_info Connect quick filter info from a specific provider to a dashboard
UserGroup Secondary user groups

Replication Flags

  • None

Security Flags

  • Sentry controls access to items in this table using user's Role and data rights matrix.
