dashboard_tile Table (482)
•
Environment: onsite, online
Some tooltip text!
• 1 minute to read
• 1 minute to read
Represents one tile in the dashboard
Fields
| Name | Description | Type | Null |
|---|---|---|---|
| dashboard_tile_id | Primary key | PK | |
| width | Width used by this tile in the dashboard | Int | ● |
| height | Height used by this tile in the dashboard | Int | ● |
| dashboard_id | The associated dashboard | FK dashboard | ● |
| dashboard_tile_definition_id | The associated tile definition | FK dashboard_tile_definition | ● |
| registered | Registered when | UtcDateTime | |
| registered_associate_id | Registered by whom | FK associate | |
| updated | Last updated when | UtcDateTime | |
| updated_associate_id | Last updated by whom | FK associate | |
| updatedCount | Number of updates made to this record | UShort | |
| rank | Rank order | UShort | ● |
Indexes
| Fields | Types | Description |
|---|---|---|
| dashboard_tile_id | PK | Clustered, Unique |
| dashboard_id | FK | Index |

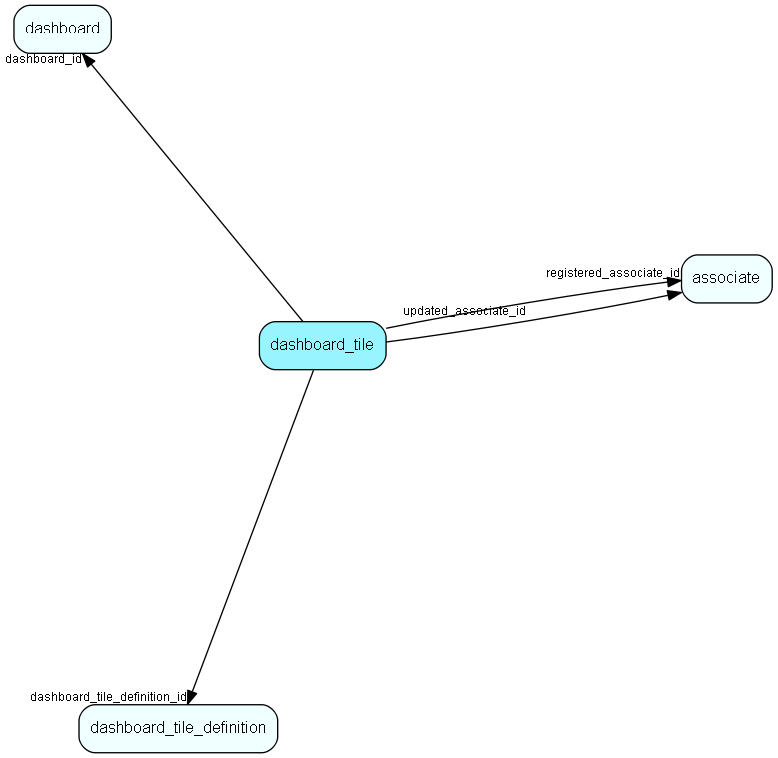

Relationships
| Table | Description |
|---|---|
| associate | Employees, resources and other users - except for External persons |
| dashboard | Describes a dashboard |
| dashboard_tile_definition | Describes the contents of a tile |
Replication Flags
- None
Security Flags
- Sentry controls access to items in this table using user's Role and data rights matrix on the table's parent.
