dashboard_tile_definition Table (484)

•

Environment: onsite, online

• 2 minutes to read

Describes the contents of a tile

Fields

Name	Description	Type	Null
dashboard_tile_definition_id	Primary key	PK
name	The name of the tile	String(4000)	●
description	Detailed description	String(4000)	●
default_width	Default width when added to a dashboard	Int	●
default_height	Default height when added to a dashboard	Int	●
tile_type	Dashboard tile type	Enum DashTileType	●
entity_type	Dashboard entity type	Enum DashTileEntityType	●
registered	Registered when	UtcDateTime
registered_associate_id	Registered by whom	FK associate
updated	Last updated when	UtcDateTime
updated_associate_id	Last updated by whom	FK associate
updatedCount	Number of updates made to this record	UShort
selection_id	Selection holding the criterias for the tile definition	FK selection	●
currency_mode	Dashboard currency mode	Enum DashTileCurrencyMode	●
sort_by	Sort by field	String(255)	●
measure	Dashboard measure type (Count, Sum, Avg, etc.)	Enum DashTileMeasure	●
measure_field	Field to be measured	String(255)	●
secondary_selection_id	Selection holding the replaced or changed criterias (period comparisons etc)	FK selection	●
layout_config	The JSON formatted layout config	Clob	●
entity_name	The entity measured by this tile, defines what provider to use	String(255)	●
measure_by_field	Field to group by	String(255)	●
currency_code	Currency code	String(3)	●
usage	Where this tile can be used	Enum DashTileUsage	●

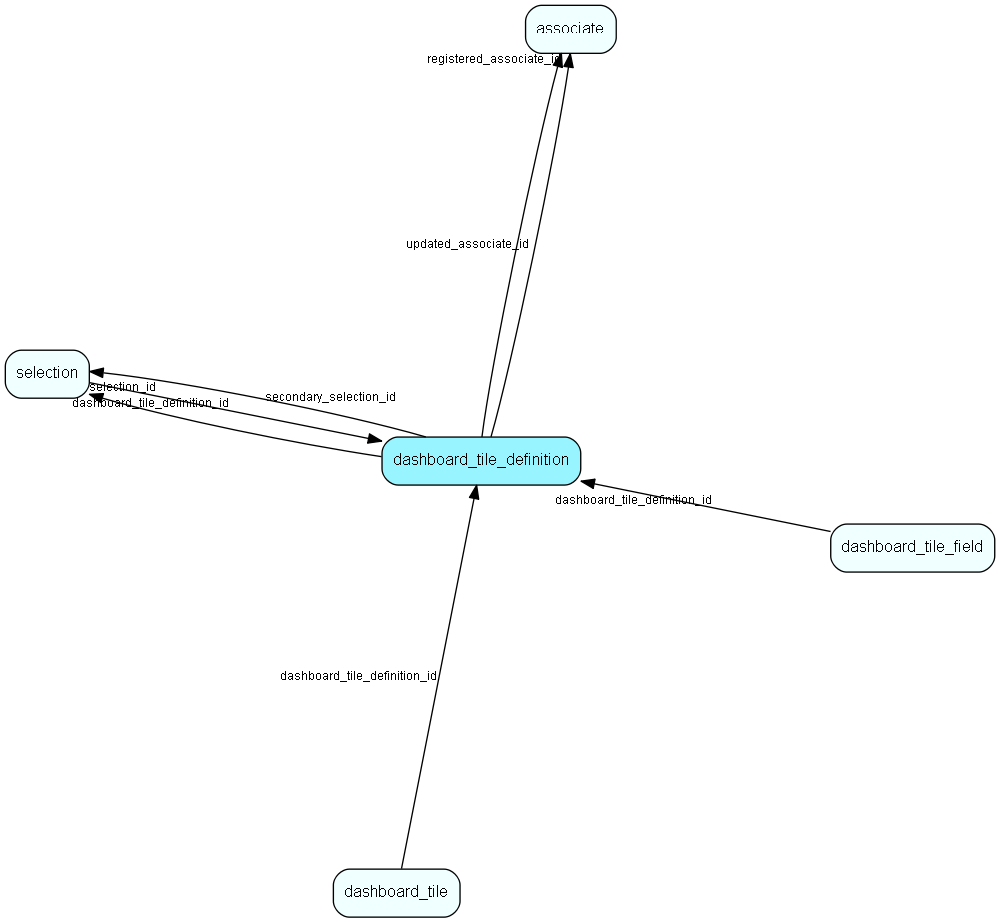

dashboard_tile_definition table relationship diagram

Fields	Types	Description
dashboard_tile_definition_id	PK	Clustered, Unique
entity_type	Enum	Index

Table	Description
associate	Employees, resources and other users - except for External persons
dashboard_tile	Represents one tile in the dashboard
dashboard_tile_field	Describes the contents of a tile field
selection	Selections

Sentry controls access to items in this table using user's Role and data rights matrix on the table's parent.
