ticket_log_action Table (269)
Some tooltip text!
• 3 minutes to read
• 3 minutes to read
This table contains actions for the tickets.
Fields
| Name | Description | Type | Null |
|---|---|---|---|
| id | The primary key (auto-incremented) | PK | |
| ticket_id | The id of the ticket this entry is connected to. | FK ticket | |
| org_ticket_id | The id of the orignal ticket this entry was connected to. | FK ticket | |
| message_id | If this entry is connected to a message, then this is a message change log entry. | FK ej_message | |
| user_id | The id of the user this entry is connected to. | FK ejuser | |
| customer_id | The id of the customer this entry is connected to. | FK person | |
| log_when | When the action occured. | DateTime | ● |
| log_action | An enum indicating what kind of log-entry this is. | Enum TicketLogAction | ● |
| description | Action description, only used by customer actions like ejscript | String(255) | |
| details | Field for storing details of the log action as e.g. JSON | Clob | ● |
Whenever a request is changed, we will create one entry in ticket_log_action (with the timestamp), and multiple entries in ticket_log_change (one entry for each value that has changed).
enum LogAction
Ticket:
| Name | Value |
|---|---|
LogAction_Ticket_Unknown |
1 |
LogAction_Ticket_CustomDescription |
2 |
LogAction_Ticket_Continue |
3 |
LogAction_Ticket_ImportTicketFromEmail |
4 |
LogAction_Ticket_ImportMailNewTicket |
5 |
LogAction_Ticket_ImportMailExistingTicket |
6 |
LogAction_Ticket_AttachmentConnectedToTicket |
7 |
LogAction_Ticket_TicketActivated |
8 |
LogAction_Ticket_TicketEscalated |
9 |
LogAction_Ticket_ConnectTwoTickets |
10 |
LogAction_Ticket_MessageAddedToTicket |
11 |
LogAction_Ticket_SendingSpmMessage |
12 |
LogAction_Ticket_SavedFromEjScript |
13 |
LogAction_Ticket_TicketEscalatedFromEjScript |
14 |
LogAction_Ticket_SetValuesFromSoap |
15 |
LogAction_Ticket_AddMessageFromSoap |
16 |
LogAction_Ticket_NewTicketFromSoap |
17 |
LogAction_Ticket_AddMessage |
18 |
LogAction_Ticket_NewTicket |
19 |
LogAction_Ticket_UserTakesOwnership |
20 |
LogAction_Ticket_ChangeStatus |
21 |
LogAction_Ticket_ChangeSecurityStatus |
22 |
LogAction_Ticket_QuickSetExtraDateTime |
23 |
LogAction_Ticket_QuickSetExtraDate |
24 |
LogAction_Ticket_QuickSetExtraTime |
25 |
LogAction_Ticket_QuickSetExtraField |
26 |
LogAction_Ticket_SwapExtraField |
27 |
LogAction_Ticket_ReadByUser |
28 |
LogAction_Ticket_BatchOperation |
29 |
LogAction_Ticket_BatchMarkAsRead |
30 |
LogAction_Ticket_BatchMarkAsUnread |
31 |
LogAction_Ticket_BatchCloseTicket |
32 |
LogAction_Ticket_EditTicket |
33 |
LogAction_Ticket_DeleteTicket |
34 |
LogAction_Ticket_JoinTickets |
35 |
LogAction_Ticket_EditMessage |
36 |
LogAction_Ticket_CloseTicketAfterForward |
37 |
LogAction_Ticket_CloseAfterMassMessage |
38 |
LogAction_Ticket_CloseTicketFromSoap |
39 |
LogAction_Ticket_ReadTicketFromSoap |
40 |
LogAction_Ticket_UserDeletedOwnerChanged |
41 |
LogAction_Ticket_NewTicketFromSpecialForm |
42 |
LogAction_Ticket_TicketClosedByFAQ |
43 |
LogAction_Ticket_NewTicketFromCustomer |
44 |
LogAction_Ticket_AddMessageFromCustomer |
45 |
LogAction_Ticket_ReadByCustomer |
46 |
LogAction_Ticket_SetRepliedAtByMassMessage |
47 |
LogAction_Ticket_TicketActivatedByBounce |
48 |
Message:
| Name | Value |
|---|---|
LogAction_Message_Unknown |
10001 |
LogAction_Message_CustomDescription |
10002 |
LogAction_Message_Continue |
10003 |
LogAction_Message_ImportTicketFromEmail |
10004 |
LogAction_Message_ImportMailAddMessage |
10005 |
LogAction_Message_AddedDebugInfo |
10006 |
LogAction_Message_SendingReplyTemplate |
10007 |
LogAction_Message_SendingSMS |
10008 |
LogAction_Message_SendingSpmMessage |
10009 |
LogAction_Message_SavedFromEjScript |
10010 |
LogAction_Message_AddMessageFromSoap |
10011 |
LogAction_Message_AddMessage |
10012 |
LogAction_Message_NewTicket |
10013 |
LogAction_Message_EditTicket |
10014 |
LogAction_Message_EditMessage |
10015 |
LogAction_Message_ForwardMessage |
10016 |
LogAction_Message_AddMassMessage |
10017 |
LogAction_Message_NewMessageFromSpecialForm |
10018 |
LogAction_Message_TicketNotifyFAQ |
10019 |
LogAction_Message_NewTicketFromCustomer |
10020 |
LogAction_Message_AddMessageFromCustomer |
10021 |
LogAction_Message_BounceMessage |
10022 |
LogAction_Message_OutboxMessage |
10023 |
LogAction_Message_EditMessageFromSoap |
10024 |
LogAction_Message_InlineImagesConverted |
10025 |
Indexes
| Fields | Types | Description |
|---|---|---|
| id | PK | Clustered, Unique |
| ticket_id | FK | Index |
| org_ticket_id | FK | Index |
| message_id | FK | Index |
| user_id | FK | Index |
| customer_id | FK | Index |

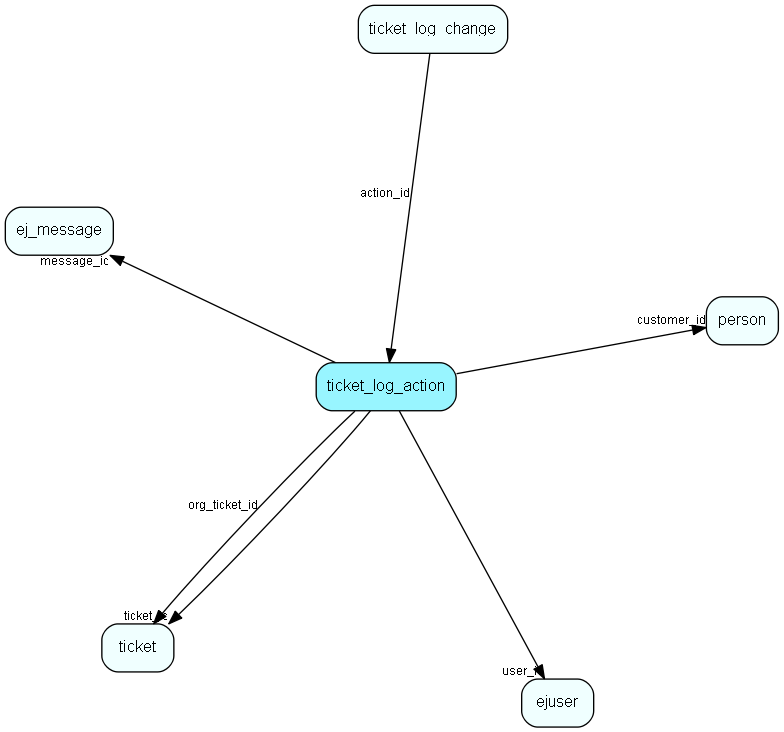

Relationships
| Table | Description |
|---|---|
| ej_message | This table contains the messages listed under tickets. |
| ejuser | This table contains entries for the users of the system. |
| person | Persons in a company or an organizations. All associates have a corresponding person record |
| ticket | This table contains the tickets (requests) of the system. Its purpose should be evident. |
| ticket_log_change | This table contains log entries for the tickets. |
Replication Flags
- None
Security Flags
- No access control via user's Role.
