OLEView Table (163)
•
Environment: onsite, online
Some tooltip text!
• 1 minute to read
• 1 minute to read
Control data table for the OLE DB Provider
Fields
| Name | Description | Type | Null |
|---|---|---|---|
| OLEView_id | Primary key | PK | |
| OLESubject_id | Owner subject | FK OLESubject | |
| progId | GUID of the module that can perform this join | String(59) | ● |
| predefined | 1 = predefined subject, do not change | UShort | ● |
| registered | Registered when | UtcDateTime | |
| registered_associate_id | Registered by whom | FK associate | |
| updated | Last updated when | UtcDateTime | |
| updated_associate_id | Last updated by whom | FK associate | |
| updatedCount | Number of updates made to this record | UShort |
Indexes
| Fields | Types | Description |
|---|---|---|
| OLEView_id | PK | Clustered, Unique |
| OLESubject_id | FK | Index |

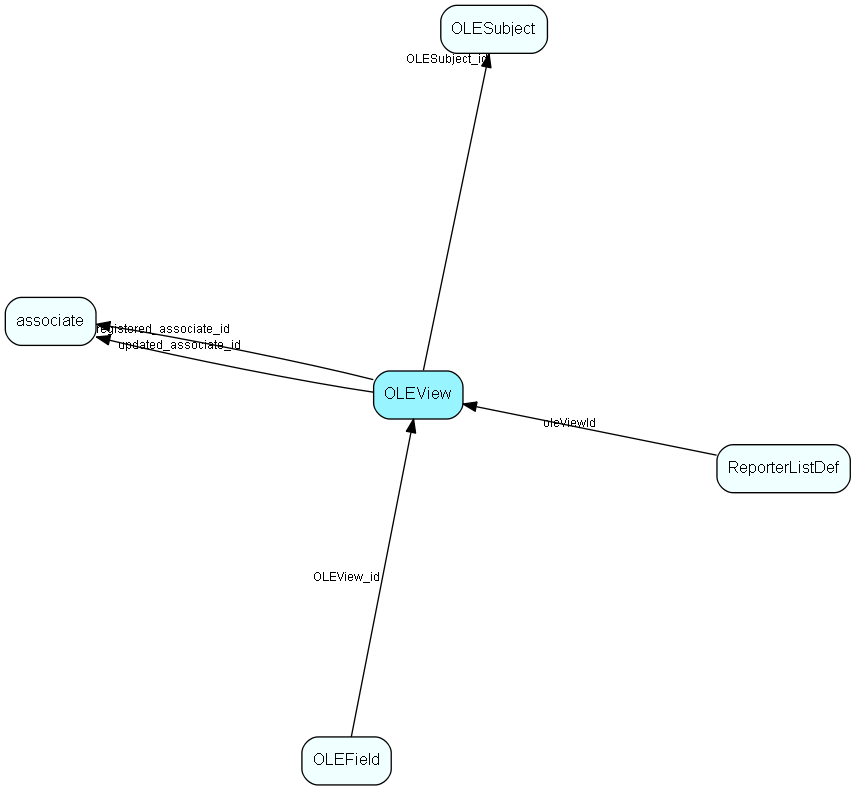

Relationships
| Table | Description |
|---|---|
| associate | Employees, resources and other users - except for External persons |
| OLEField | Control data table for the OLE DB Provider |
| OLESubject | Control data table for the OLE DB Provider |
| ReporterListDef | Reporter definitions |
Replication Flags
- Replicate changes DOWN from central to satellites and travellers.
- Replicate changes UP from satellites and travellers back to central.
- Copy to satellite and travel prototypes.
Security Flags
- No access control via user's Role.
