ErpExternalKey Table (423)
•
Environment: onsite, online
Some tooltip text!
• 2 minutes to read
• 2 minutes to read
The external (ERP-facing) key related to a synchronized record / connection
Fields
| Name | Description | Type | Null |
|---|---|---|---|
| erpexternalkey_id | Primary key | PK | |
| ErpInternalKeyId | Link to the internal key and thus the original table/record in SuperOffice that is being synchronized | FK ErpInternalKey | |
| ErpConnectionId | Link to the Erp connection the key relates to | FK ErpConnection | |
| ErpKey | The primary key from the ERP system | String(254) | |
| ActorType | The actor type within the ERP system of this synchronized record | Enum ErpActorType | |
| MostRecentTimestamp | Datetime, transaction number or other identification of the point in time of the most-recently seen actor in the ERP system | String(254) | |
| registered | Registered when | UtcDateTime | |
| registered_associate_id | Registered by whom | FK associate | |
| updated | Last updated when | UtcDateTime | |
| updated_associate_id | Last updated by whom | FK associate | |
| updatedCount | Number of updates made to this record | UShort |
Indexes
| Fields | Types | Description |
|---|---|---|
| erpexternalkey_id | PK | Clustered, Unique |
| ErpConnectionId, ErpInternalKeyId | FK, FK | Unique |
| ErpConnectionId, ActorType, ErpKey | FK, Enum, String(254) | Unique |
| ErpInternalKeyId | FK | Index |

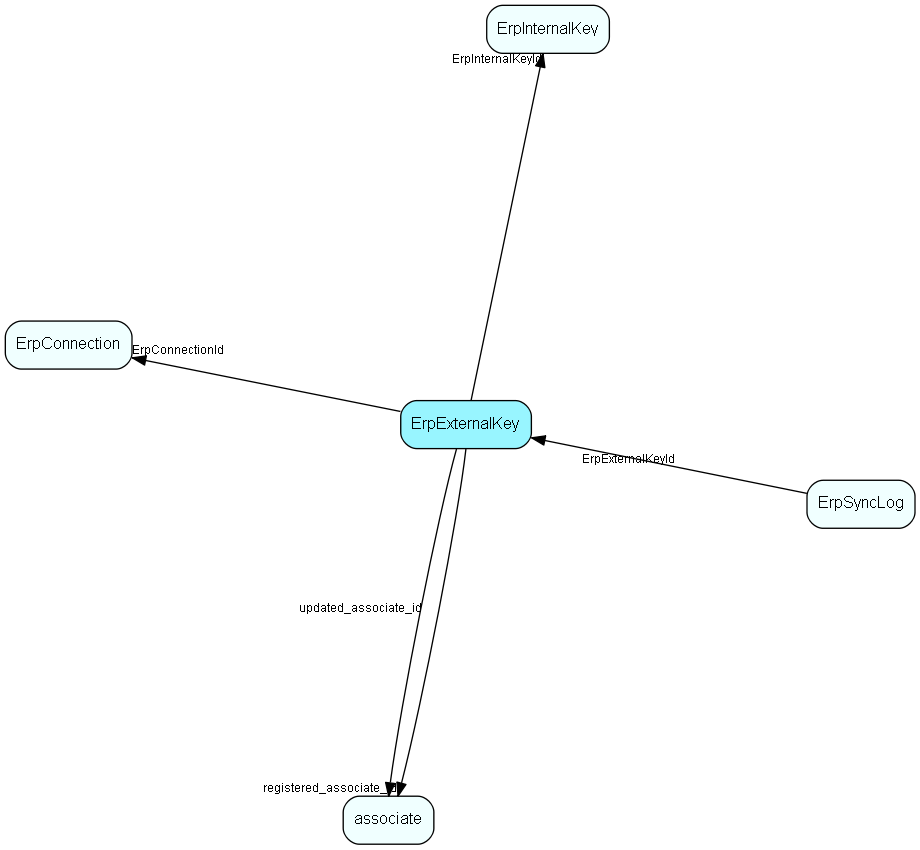

Relationships
| Table | Description |
|---|---|
| associate | Employees, resources and other users - except for External persons |
| ErpConnection | One connection to an ERP connector, specifying Client and other required information |
| ErpInternalKey | The internal (superoffice-facing) key related to a synchronized record |
| ErpSyncLog | Record all field changes done by the Erp Sync |
Replication Flags
- None
Security Flags
- No access control via user's Role.
