How to build your OAuth native app flow

•

Environment: cloud

• 7 minutes to read

A native application is either a mobile application or application that runs on an operating system in a windowed frame, windowless service, or console application. This type of application is not the same as a browser-based web application.

Let's look at how to use IdentityModel’s OpenID Connect (OIDC) client library to authenticate towards SuperOffice SuperID using the native app workflow. It demonstrates how to set the required OpenID Connect options.

This guide uses a .NET Framework console application and is a copy of the IdentityModel GitHub project page.

There are a couple of extra lines of code to be aware of for SuperOffice SuperID, after setting the client options. You can download the example code.

Pre-requisites:

you have a tenant with a user for testing sign-on
you have to have registered your application with a redirect URI of http://127.0.0.1\:\d{4,10}
you have received a unique application client ID and secret

Set up your tools

In Visual Studio, create either a .NET Core or .NET Framework console application.
In the Package Manager Console, install the IdentityModel OpenID Connect client using the following command:

Install-Package IdentityModel.OidcClient

Get started

Create a redirect URI using an available port on the loopback address "^http://127.0.0.1\\:\\d{4,10}$". You are free to use any path text instead of desktop-callback.
```
string redirectUri = string.Format("http://127.0.0.1:7890");
```

Create an HttpListener to listen for requests at that redirect URI:

var http = new HttpListener();
http.Prefixes.Add(redirectUri);
http.Start();

Set the OpenID Connect client options:

var options = new OidcClientOptions
{
  Authority = "https://sod.superoffice.com/login",
  LoadProfile = false,
  ClientId = "YOUR\_APPLICATION\_ID",
  ClientSecret = "YOUR\_APPLICATION\_TOKEN",
  Scope = "openid profile api",
  RedirectUri = "http://127.0.0.1:7890",
  ResponseMode = OidcClientOptions.AuthorizeResponseMode.FormPost,
  Flow = OidcClientOptions.AuthenticationFlow.Hybrid,
};

Set the following policy options to ensure a smooth experience:
- Validates the issuer name
- Requires the response includes a token hash
```
options.Policy.Discovery.ValidateIssuerName = false;
options.Policy.RequireAccessTokenHash = false;
```
Instantiate the OpenID Connect client, passing in the client options. Then call the PrepareLoginAsync method to validate the configuration options and set the nonce and state:
```
var client = new OidcClient(options);
var state = await client.PrepareLoginAsync();
```

Open a system browser and then wait for the authorization response:

Process.Start(state.StartUrl);
var context = await http.GetContextAsync();

Get the request body:

var formData = string.Empty;
if (context.Request.HasEntityBody)
{
    using (var body = context.Request.InputStream)
    {
        using (var reader = new System.IO.StreamReader(
            body,
            context.Request.ContentEncoding))
        {
            formData = reader.ReadToEnd();
        }
    }
}

Send a useful reply to the browser before processing the JWT. For example, give a warning message informing that the browser is about to re-direct to the help center, and set the refresh properties to do so after 5 seconds.

// sends an HTTP response to the browser.
var response = context.Response;
// create HTML to send to the browser
string responseString =
@"<html>
    <head>
        <meta http-equiv='refresh'
              content='5;url=https://community.superoffice.com'>
    </head>
    <body>
        <h1>Redirecting you to the SuperOffice Help Center...</h1>
    </body>
</html>";
// convert the markup to byte\[\] format
var buffer = Encoding.UTF8.GetByte(responseString);
response.ContentLength64 = buffer.Length;
// get the response output stream to write to
var responseOutput = response.OutputStream;
// write the HTML to the output stream
// and then close the stream.
await responseOutput.WriteAsync(buffer, 0,buffer.Length);
responseOutput.Close();

Process the result by sending the formData result to ProcessResponseAsync:
```
var result = await client.ProcessResponseAsync(formData, state);
```

What do I get back from the server?

The result from ProcessResponseAsync is a LoginResult, which contains all of the details you might expect, such as the access token and refresh token.

Other libraries may name their login result container something differently, but they should all contain the key elements.

namespace IdentityModel.OidcClient
{
  public class LoginResult : Result
  {
    public virtual ClaimsPrincipal User { get; internal set; }
    public virtual string AccessToken { get; internal set; }
    public virtual string IdentityToken { get; internal set; }
    public virtual string RefreshToken { get; internal set; }
    public virtual DateTime AccessTokenExpiration { get; internal set; }
    public virtual DateTime AuthenticationTime { get; internal set; }
    public virtual HttpMessageHandler RefreshTokenHandler { get; internal set; }
  }
}

The following code fragment shows how you can access the user's claims to obtain the tenant's SOAP or REST web service endpoints:

if (!result.IsError)
{
   // iterate over the list of claims
    foreach (var claim in result.User.Claims)
    {
        Console.WriteLine("{0}: {1}", claim.Type, claim.Value);
    }

    // write out the access token
    Console.WriteLine("Access token:\\n{0}", result.AccessToken);

    // if present, write out the refresh token
    if (!string.IsNullOrWhiteSpace(result.RefreshToken))
    {
        Console.WriteLine("Refresh token:\\n{0}", result.RefreshToken);
    }

    // get the base NetServer SOAP Endpoint
    string soapUrl = result.User.Claims.Where(c => c.Type.Contains("netserver_url")).Select(n => n.Value).FirstOrDefault();

    // get the base NetServer REST Endpoint
    string restUrl = result.User.Claims.Where(c => c.Type.Contains("webapi_url")).Select(n => n.Value).FirstOrDefault();
}
else // write out the authentication error
{
    Console.WriteLine("\\n\\nError:\\n{0}", result.Error);
}

Troubleshooting

The IdentityModel.OidcClient package has a fairly long list of dependencies that will also be installed and listed in the package.config file.

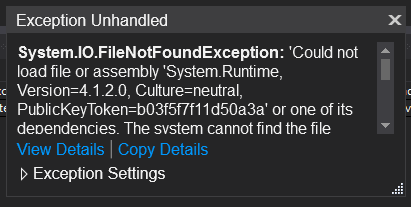

Some of the packages in the .NET Framework sample may not update assembly references in the app.config file. If you make any changes, such as installing a new package, and run the application only to observe the following exception, you may have to examine the app.config file and update the assemblyBindings accordingly.

Here, several of the assemblies were listed in the assemblyBinding element and needed to be updated from version 4.1.2.0 to 4.3.0 (installed with the packages).

I had to update the dependent versions from 4.1.2.0 to 4.0.3.

<runtime\>
  <assemblyBinding xmlns\="urn:schemas-microsoft-com:asm.v1"\>
    <dependentAssembly\>
      <assemblyIdentity name\="Newtonsoft.Json" publicKeyToken\="30ad4fe6b2a6aeed" culture\="neutral" />
      <bindingRedirect oldVersion\="0.0.0.0-11.0.0.0" newVersion\="11.0.0.0" />
    </dependentAssembly\>
    <dependentAssembly\>
      <assemblyIdentity name\="System.Runtime" publicKeyToken\="b03f5f7f11d50a3a" culture\="neutral" />
      <bindingRedirect oldVersion\="0.0.0.0-4.1.2.0" newVersion\="4.3.0" />
    </dependentAssembly\>
    <dependentAssembly\>
      <assemblyIdentity name\="System.Diagnostics.Tracing" publicKeyToken\="b03f5f7f11d50a3a" culture\="neutral" />
      <bindingRedirect oldVersion\="0.0.0.0-4.2.0.0" newVersion\="4.3.0" />
    </dependentAssembly\>
    <dependentAssembly\>
      <assemblyIdentity name\="System.Reflection" publicKeyToken\="b03f5f7f11d50a3a" culture\="neutral" />
      <bindingRedirect oldVersion\="0.0.0.0-4.1.2.0" newVersion\="4.3.0" />
    </dependentAssembly\>
    <dependentAssembly\>
      <assemblyIdentity name\="System.Linq.Expressions" publicKeyToken\="b03f5f7f11d50a3a" culture\="neutral" />
      <bindingRedirect oldVersion\="0.0.0.0-4.1.2.0" newVersion\="4.3.0" />
    </dependentAssembly\>
    <dependentAssembly\>
      <assemblyIdentity name\="System.Linq" publicKeyToken\="b03f5f7f11d50a3a" culture\="neutral" />
      <bindingRedirect oldVersion\="0.0.0.0-4.1.2.0" newVersion\="4.3.0" />
    </dependentAssembly\>
    <dependentAssembly\>
      <assemblyIdentity name\="System.Runtime.Extensions" publicKeyToken\="b03f5f7f11d50a3a" culture\="neutral" />
      <bindingRedirect oldVersion\="0.0.0.0-4.1.2.0" newVersion\="4.3.0" />
    </dependentAssembly\>
  </assemblyBinding\>
</runtime\>
