How to add an Archive control

•
Environment: onsite
• 7 minutes to read
 • 7 minutes to read

Archive control

Archive controls are comprised of the following components:

  • Configuration
  • Data source
  • Displayed columns
  • Header context menu
  • Row context menu - how to add it
  • Toolbar buttons (row single-click and double-click actions, toolbar action) - how to add it

Here, we'll look at adding a new archive control with a header context menu and the requirements associated with that task.

Configuration

Archive controls are created within a control element of type SoArchiveControl. The ID attribute is used to uniquely identifies this particular archive from all others in SuperOffice. A common naming practice adds the Archive suffix to the ID for easily identifying the control through the system.

In the following example, a control element declares an archive control with ID CustomDataArchive.

<control id="CustomDataArchive" type="SoArchiveControl">
  ...
</control>

Data source

A child config element defines the characteristics of the archive control. The providername element defines the archive control data source and the restrictions element controls the criteria passes to the datasource to restrict the results.

This example declared the person archive provider as the datasource. The criteria used to restrict the number of person rows shown is the contactId, which is one of the available columns in the person archive provider.

The current element is set to anchor the current person entity. This means that when a person row is selected in the archive control, this will set the selected person as the current person in the current system.

<control id="CustomDataArchive" type="SoArchiveControl">
  <config>
      <providername>person</providername>
      <restrictions>
        <restriction name="contactId" operator="=" binding="current">contact</restriction>
      </restrictions>
      <current>person</current>
  </config>
</control>

Displayed columns

All archive providers implement the same interfaces to ensure they have a uniform behavior. Each one defines a set of available columns to display data in an archive control, but how and which columns are displayed are managed by several mechanisms.

Archive control architecture

Once an SoArchiveControl is defined in a page, the controls' id attribute is used as a gui-identifier, called a guiname. Together, the guiname and provider name defined a unique archive element in the SoArchiveColumnList.config file.

The combination of providername and guiname must be unique as duplicates will create odd user-experience behaviors in SuperOffice.

Note

Casing is lower-case.

Example section in SoArchiveColumnList.config

<archive providername="person" guiname="customdataarchive">
  <columns>
    <column name="hasInfoText" default="true" mandatory="false" ignore="false" />
    <column name="hasInterests" default="true" mandatory="false" ignore="false" />
    <column name="mrMrs" default="true" mandatory="false" ignore="false" />
    <column name="firstName" default="true" mandatory="false" ignore="false" />
    <column name="middleName" default="false" mandatory="false" ignore="false" />
    <column name="lastName" default="true" mandatory="false" ignore="false" />
    <column name="title" default="true" mandatory="false" ignore="false" />
    <column name="email/emailAddress" default="true" mandatory="false" ignore="false" />
    ...
  </columns>
</archive>

Configure columns

To enable the ability to use the Customize dialog to configure displayed column and positioning, the page hosting the archive control must declare the ArchiveColumnConfigDataHandler at the top of the page.

<page id="ContactPage">
  <data>
    <datahandlers>
      <datahandler id="ContactEntityDataHandler" type="ContactEntityDataHandler" />
      <datahandler id="PersonEntityDataHandler" type="PersonEntityDataHandler" />
      <datahandler id="ArchiveColumnConfigDataHandler" type="ArchiveColumnConfigDataHandler">
        <config>
          <archivecolumninfos>
            <!--guiname maps to definition in SoArchiveColumnList.config-->
            <archivecolumninfo guiname="CustomDataArchive" providername="person"/>
          </archivecolumninfos>
        </config>
      </datahandler>
    </datahandlers>
  </data>
  <panels>
  ...
  </panels>
</page>

With a data handler configured, add the archivecolumninfo-datasourcename element to the SoArchiveControl config section. This provides the personalized functionality where different users can configure different columns without affecting each other's view of the same data source.

The first time an archive control is viewed in SuperOffice, it creates a record in the database table SuperListColumnSize. Future changes by users in the Customize dialog are persisted for each user in the table.

<control id="CustomDataArchive" type="SoArchiveControl">
  <config>
      <providername>person</providername>
      <restrictions>
        <restriction name="contactId" operator="=" binding="current">contact</restriction>
      </restrictions>
      <current>person</current>
      <archivecolumninfo-datasourcename>ArchiveColumnConfigDataHandler.CustomDataArchive</archivecolumninfo-datasourcename>
  </config>
</control>
Note

During development that any changes to configuration or data source will not be seen in the UI until the record in SuperListColumnSize is deleted.

Add menu element to SoMenuConfiguration.config

Configure columns

To show the header context menu when a header item is right-clicked (the "configure columns" menu), you must add a <menu> element between the <control> and <config> elements in the SoArchiveControl.

<menu>
  <context>archive</context>
  <subcontext>customdata</subcontext>
  <id binding="none">0</id>
  <position>belowcursor</position>
  <click>right</click>
</menu>

The context and sub-context attributes must match a menu element defined in the SoMenuConfiguration.config file. These are the identifiers that distinguish this menu item from all others.

An important convention to note about the following markup. Rendered archive control names are the result of combining the ID value suffixed with ArchiveControl. The result, with the archive control ID CustomDataArchive, becomes CustomDataArchiveArchiveControl. Therefore, when referencing the archive control in JavaScript (as seen below), use the full term CustomDataArchiveArchiveControl.

<menu context="archive" subcontext="customdata" id="0" position="below" group="mainmenu" displayaccesskeys="false">
  <menuitems>
    <menuitem id="archivesort" type="normal" >
      <caption>[SR_MENU_SORT]</caption>
      <url>Javascript:CustomDataArchiveArchiveControl.OrgOrderBy();</url>
    </menuitem>
    <menuitem id="" type="divider"/>
    <menuitem id="archivesortconfig" type="normal">
      <caption>[SR_MENU_SORT_CONFIG]</caption>
      <url>Javascript:Dialog.open("archiveconfiguration", "archiveconfiguration[dialog=stop].sortorder?provider_name=person&amp;gui_name=CustomDataArchive","CustomDataArchiveArchiveControl.Refresh();");</url>
    </menuitem>
    <menuitem id="archivecolumnconfig" type="normal">
      <caption>[SR_MENU_COLUMNS_CONFIG]</caption>
      <url>Javascript:Dialog.open("archiveconfiguration", "archiveconfiguration[dialog=stop].columns?provider_name=person&amp;gui_name=CustomDataArchive","CustomDataArchiveArchiveControl.Refresh();");</url>
    </menuitem>
    <menuitem id="" type="divider"/>
    <menuitem id="archivesorthelp" type="normal">
      <caption>[SR_MENU_LIST_HELP_SORT]</caption>
      <url>javascript:Dialog.ShowHelpFromIndex('archive.sort');</url>
    </menuitem>
    <menuitem id="archivecolumnresize" type="normal">
      <caption>[SR_MENU_LIST_HELP_RESIZE]</caption>
      <url>javascript:Dialog.ShowHelpFromIndex('archive.resize');</url>
    </menuitem>
  </menuitems>
</menu>

Contact page example with SoArchiveControl

<page id="ContactPage">
  <data>
    <datahandlers>
      <datahandler id="ContactEntityDataHandler" type="ContactEntityDataHandler" />
      <datahandler id="PersonEntityDataHandler" type="PersonEntityDataHandler" />
      <datahandler id="ArchiveColumnConfigDataHandler" type="ArchiveColumnConfigDataHandler">
        <config>
          <archivecolumninfos>
            <!--guiname maps to definition in SoArchiveColumnList.config-->
            <archivecolumninfo guiname="CustomDataArchive" providername="person"/>
          </archivecolumninfos>
        </config>
      </datahandler>
    </datahandlers>
  </data>
  <panels>
    <panel id="Contact" type="SplitterPanel" soprotocol="Contact" paneltype="Main">
    <!-- skipping other elements for brevity -->
      <card id="ContactArchives" placeholderid="bottom" type="SoTabbedCard" cardtype="ArchiveCard" layout-position="south">
      <views>
      <!-- *************************************************************
        Assuming a custom archive section (discussed in Displayed Columns above)
        added to SoArchiveColumnList.config file...

        Add this view under others in ContactArchives in SoContactPanel.config
        ****************************************************************-->
        <view id="CustomDataArchiveView" type="SoView" soprotocol="customdataarchive"  rendermode="display">
          <caption binding="resources">Custom Data</caption>
          <controlgroups>
            <controlgroup id="customdatagroup" type="SoControlGroup" position="absolute" left="0px" right="0px" top="0px" bottom="0px">
              <controls>
                <control id="CustomDataArchive" type="SoArchiveControl" width="100%" top="0px" left="0px" height="100%" position="absolute">
                <!-- define header context menu -->
                  <menu>
                    <context>archive</context>
                    <subcontext>customdata</subcontext>
                    <id binding="none">0</id>
                    <position>belowcursor</position>
                    <click>right</click>
                  </menu>
                  <config>
                    <providername>person</providername>
                    <restrictions>
                      <restriction name="contactId" operator="=" binding="current">contact</restriction>
                    </restrictions>
                    <current>person</current>
                    <archivecolumninfo-datasourcename>ArchiveColumnConfigDataHandler.CustomDataArchive</archivecolumninfo-datasourcename>
                    <showheader>true</showheader>
                  </config>
                </control>
              </controls>
            </controlgroup>
          </controlgroups>
          <triggers>
            <trigger type="current">contact</trigger>
            <trigger type="current">person</trigger>
          </triggers>
        </view>
      </views>
    </panel>
  </panels>
</page>

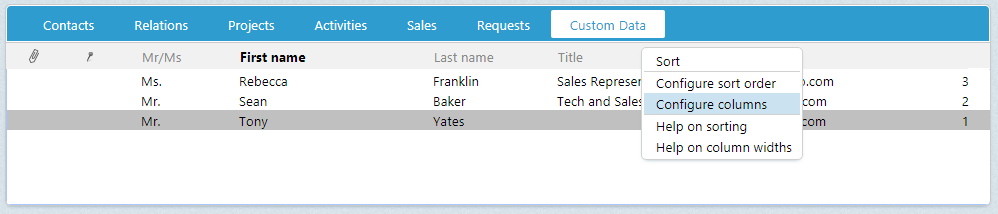

Result

Customized archive control
