Adding a textbox that displays data from a data handler

•
Environment: onsite
• 2 minutes to read
 • 2 minutes to read

The difference between a textbox and a label is that the data displayed through the textbox can be edited by the user whereas data displayed through a label is un-editable.

This example illustrates how to shows the Contact Name below the data displayed in the Interest view of the Contact panel.

Since we plan to modify the Contact panel we need to make changes to the SoContactPanel.config file. The next step is to add a text box to the Interest view, which will be done using the SoTextBox control provided by SuperOffice.

<panel id="Contact" type="SplitterPanel" soprotocol="Contact" paneltype="Main" placeholderid="MainPlaceHolder">
  <caption>[SR_COMMON_CONTACT]: [current:contact_name]</caption>
  <cards>
    <card id="ContactMainCard" type="SoTabbedCard" placeholderid="leftpanel" cardtype="MainCard">
      <views>
        <view id="MainView" reference="MainView"></view>
        <!--Some other Code -->
        <view id="interests" type="SoView" soprotocol="interest" current="contact">
          <!--Some other Code -->
          <!--Our Code Begins here -->
          <controlgroup id="interestHeadergroup2" type="SoControlGroup" position="absolute" top="100px" left="15px" right="20px">
            <controls>
              <control id="newTextBox" type="SoTextBox" context-style="Heading" width="100%">
               <datasource>ContactEntityDataHandler.ContactEntity.Name</datasource>
              </control>
            </controls>
          </controlgroup>
          <!--Our Code Ends here -->
          <!--Some other Code -->
        </view>
      </views>
    </card>
  </cards>
</panel>
  • We have used the SoTextBox user control above. For us to use the control, it should be included inside the control element which is inside controls.
  • We use the controlgroup element to determine the position where the textbox to be placed.
  • The datasource element inside the control tells us from where to retrieve the data (from the ContactEntityDataHandler).
Note

A DataHandler to be used in a …Panel.Config file should be first identified in the relevant …Page.config file’s DataHandlers section.

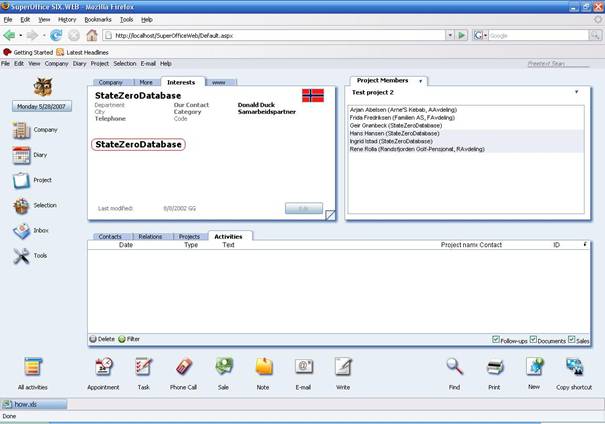

Once the code segment is added to the SoContactPanel.config file, the Interests view would look like this:
