Adding a label

•
Environment: onsite
• 2 minutes to read
 • 2 minutes to read

In this example, we will add a new label called Quick Links to the navigator panel. For this. we need to modify the SoNavigatorPanel.config file. We have used the control called SoLabel to add the label.

Example 1

<panel id="Navigator" type="SoPanel" soprotocol="" paneltype="Navigator" top="20px" left="0px" height="800px" overflow="auto" width="160px" position="absolute" zindex="99">
  <cards>
    <card id="NavigatorCard" type="SoCard" placeholderid="" cardtype="NavigatorCard">
      <views>
        <view id="NavigatorView" type="SoPlainView" overflow="auto" soprotocol="Navigator" >
          <controlgroups>
            <controlgroup id="ButtonGroup" type="SoControlGroup" position="relative" left="16px" top="10px">
              <controls>
                <!--Some other Code -->
                <!--Our Code Begins here -->
                <control id="newLabel" type="SoLabel" context-style="Heading" row="0" column="0">
                  <caption>Quick Links</caption>
                </control>
                <!-- Our Code Ends here -->
                <!--Some other Code -->
              </controls>
            </controlgroup>
          </controlgroups>
        </view>
      </views>
    </card>
  </cards>
</panel>

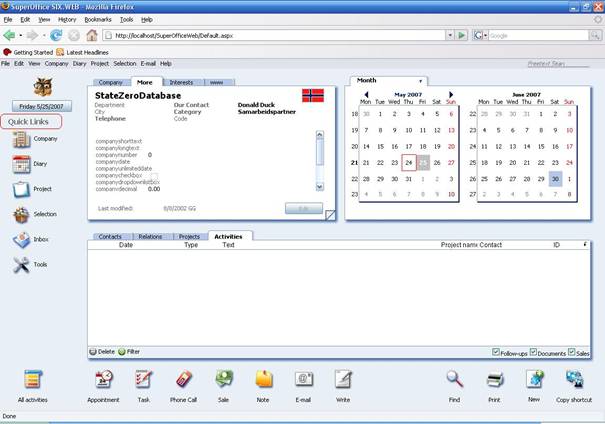

The change is marked between the 2 comments (Our code begins/ends here). We have added a label using SoLabel. In the control element, we have given an ID that could recognize the control and what type of control it is (SoLabel). The caption element is used to set the text on the label control. Once this code segment is added the navigator pane will look as follows:

01

Example 2

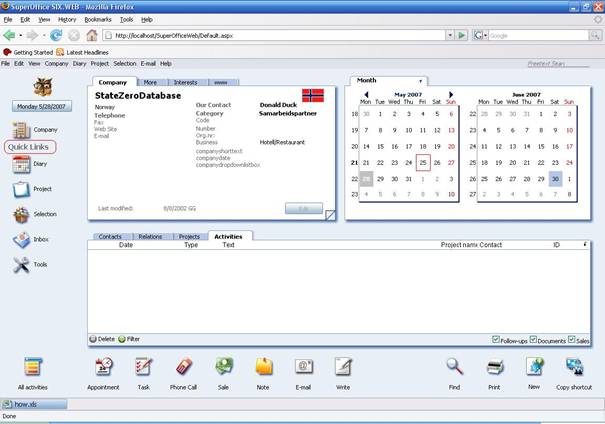

Depending on the place we use the control we can change the position of the display. For example, if we were to use it under the ContactButton control the label would be displayed after the Company button.

<panel id="Navigator" type="SoPanel" soprotocol="" paneltype="Navigator" top="20px" left="0px" height="800px" overflow="auto" width="160px" position="absolute" zindex="99">
  <cards>
    <card id="NavigatorCard" type="SoCard" placeholderid="" cardtype="NavigatorCard">
      <views>
        <view id="NavigatorView" type="SoPlainView" overflow="auto" soprotocol="Navigator" >
          <controlgroups>
            <controlgroup id="ButtonGroup" type="SoControlGroup" position="relative" left="16px" top="10px">
              <controls>
              <!--Some other Code -->
                <control id="contactButton" type="SoToolButton">
                <caption>[SR_COMMON_CONTACT]</caption>
                <tooltip>{button_id=TooltipOnLContact}</tooltip>
                <!--Some other Code -->
              </control>
              <!--Our Code Begins here -->
                <control id="newLabel" type="SoLabel" context-style="Heading" row="0" column="0">
                  <caption>Quick Links</caption>
                </control>
              <!-- Our Code Ends here -->
              <!--Some other Code -->
              </controls>
            </controlgroup>
          </controlgroups>
        </view>
      </views>
    </card>
  </cards>
</panel>

02
