Set up the Database Mirroring client

Some tooltip text!

• 12 minutes to read

 • 12 minutes to read

The Database Mirroring client keeps a customer-managed SQL Server replica in sync with your SuperOffice Online tenant.

Note

Internally, the new client is sometimes referred to as the Replication Client — this is the same Database Mirroring feature. The binary is named SuperOffice.Online.Replication.Client.exe, the Operation Center tab is labelled Replication, and the metadata table is _ReplicationState. These literal names appear throughout the product UI and are kept as-is in this guide.

Unlike the legacy WCF-based Mirroring service, the new client is outbound-only: it makes HTTPS calls to SuperOffice. You do not need to open inbound ports, host a public endpoint, or manage SuperOffice-issued certificates.

This guide walks you through the complete setup:

• Prerequisites - what you need before you start
• Step 1: Download the client from Operation Center
• Step 2: Configure appsettings.json
• Step 3: Provision (authenticate and create session)
• Step 4: Run a manual sync
• Step 5: Install as a Windows Service
• Step 6: Validate
• Configuration reference
• Command reference
• Logging and diagnostics
• Operating considerations

Prerequisites

Make sure the following are in place before starting:

• .NET 8 runtime installed on the host machine (or use the self-contained build).
• SQL Server instance accessible from the host. An empty database is recommended for the initial setup.
• The SQL user needs db_owner permissions on the replica database, so the client can manage tables and the internal _ReplicationState table.
• Outbound HTTPS access from the host to the SuperOffice Replication Dispatcher and Service URLs.
• Local administrator rights on the host for provisioning and Windows Service installation.
• A SuperOffice Online subscription that includes the Database Mirroring add-on.

Important

There are no inbound ports to open, and no SuperOffice-issued certificates to install. The client connects outbound only.

Step 1: Download the client

1. Sign in to Operation Center (OC) at https://online.superoffice.com/OC2.

2. If you have access to more than one tenant, navigate to the customer tenant and open the Replication tab.

   Note

   If the Replication tab is missing, the customer does not have a Database Mirroring subscription. Contact SuperOffice to enable it.

3. Download the client zip file and extract it to a folder on the host, for example:

   D:\ReplicationClient


Step 2: Configure appsettings.json

Open appsettings.json in the extracted folder and update the connection string:

{
  "ReplicaDatabase": {
    "ConnectionString": "Server=YOUR_SQL_SERVER;Database=YOUR_REPLICA_DB;Trusted_Connection=True"
  }
}

For more examples, see connectionstrings.com/sql-server.

Choose the destination schema (optional)

By default the client preserves the source schema from SuperOffice — typically crm7. If your downstream applications expect tables in dbo (or another schema), set TablePrefix before you run provision:

{
  "ReplicaDatabase": {
    "ConnectionString": "Server=...;Database=...;Trusted_Connection=True",
    "TablePrefix": "dbo"
  }
}

Warning

TablePrefix only takes effect during the initial snapshot. Changing it after provisioning does not move tables between schemas. See Schema alignment in the migration guide for details.

The defaults shown in the configuration reference suit most setups.

Step 3: Provision (authenticate and create session)

Provisioning authenticates your administrator account and downloads the session configuration. Run this command from the extracted client folder:

SuperOffice.Online.Replication.Client.exe provision

This opens a browser. Follow the sub-steps below.

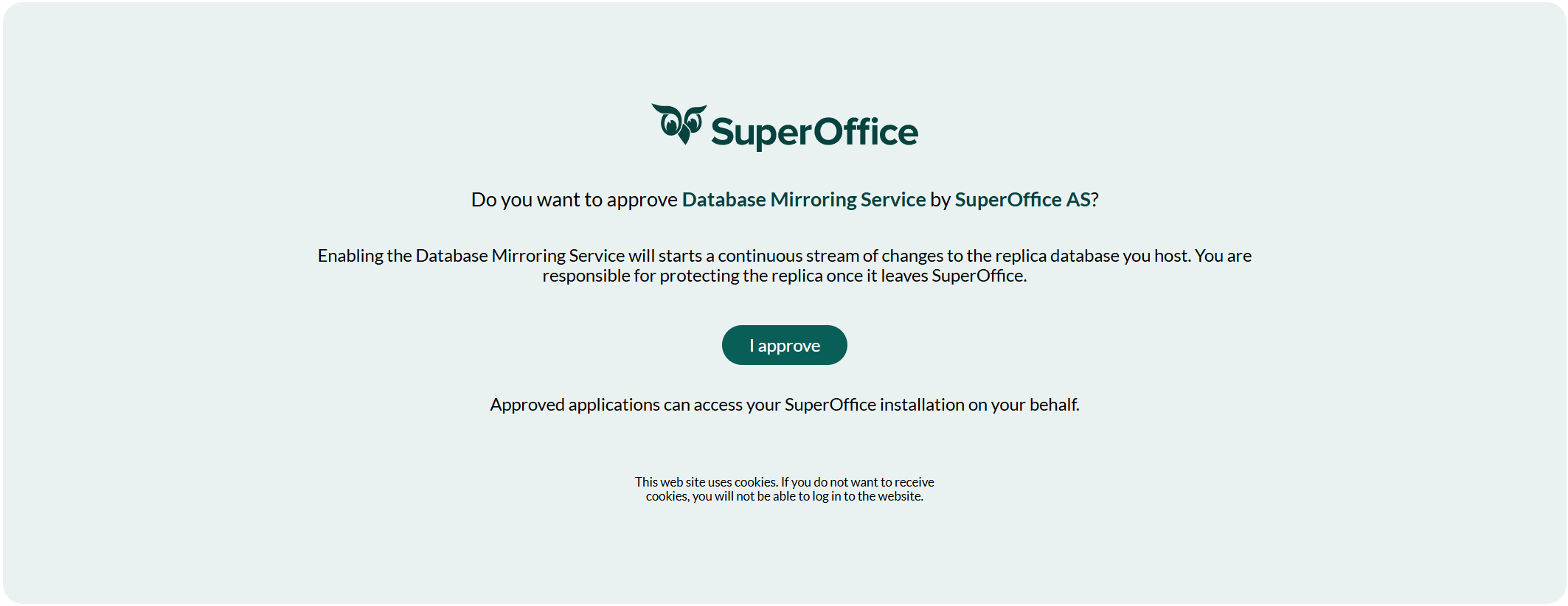

3.1 Approve the Database Mirroring Service

You are redirected to a SuperOffice consent page asking you to approve the Database Mirroring Service by SuperOffice AS.

Click I approve to continue.

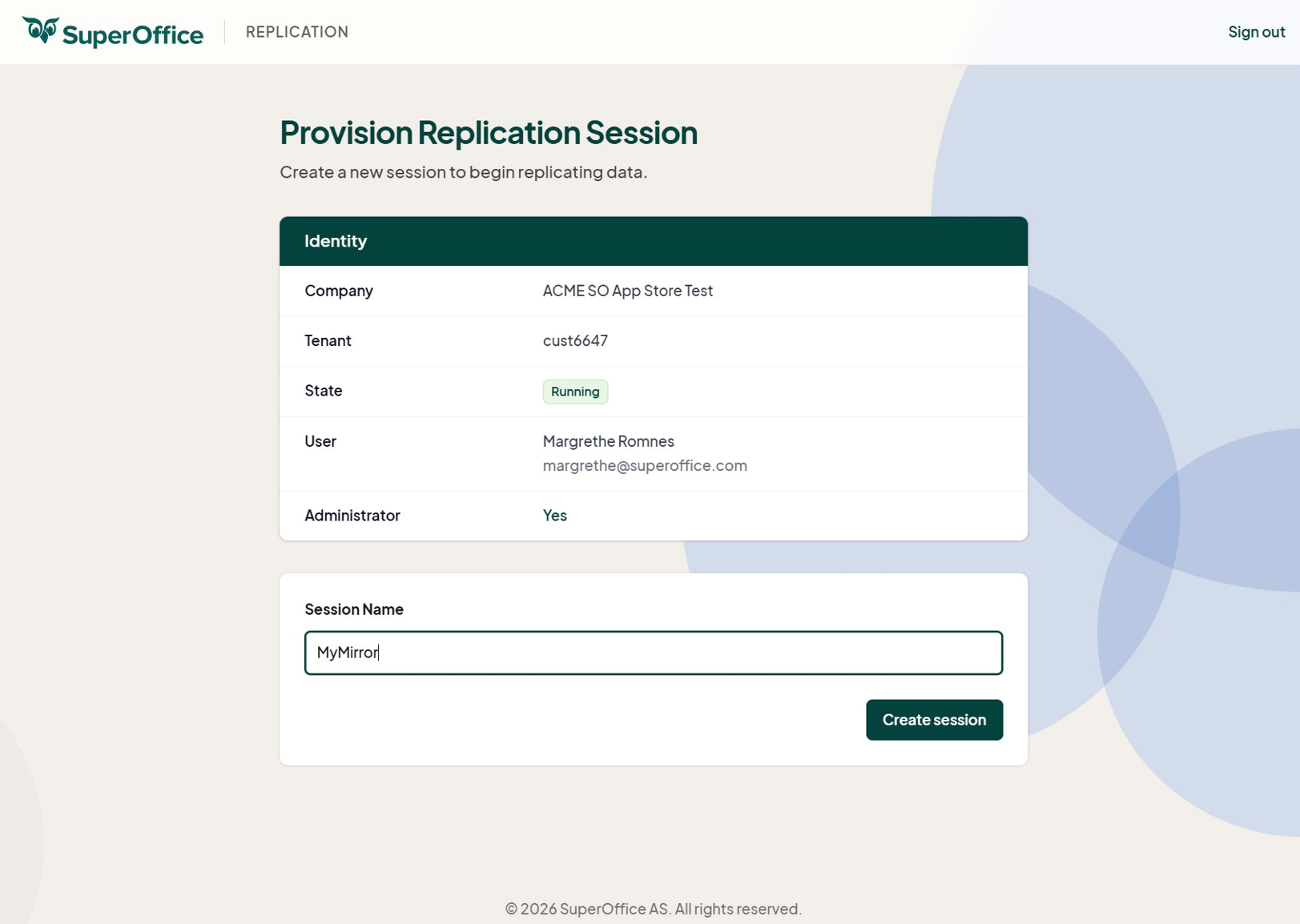

3.2 Create the replication session

After approval you are taken to the Provision Replication Session page. Your tenant identity is shown automatically. Enter a Session Name and click Create session.

Tip

Choose a descriptive session name (for example, Production or MyMirror). It becomes the Replication ID that is visible in Operation Center and forms part of the Windows Service name.

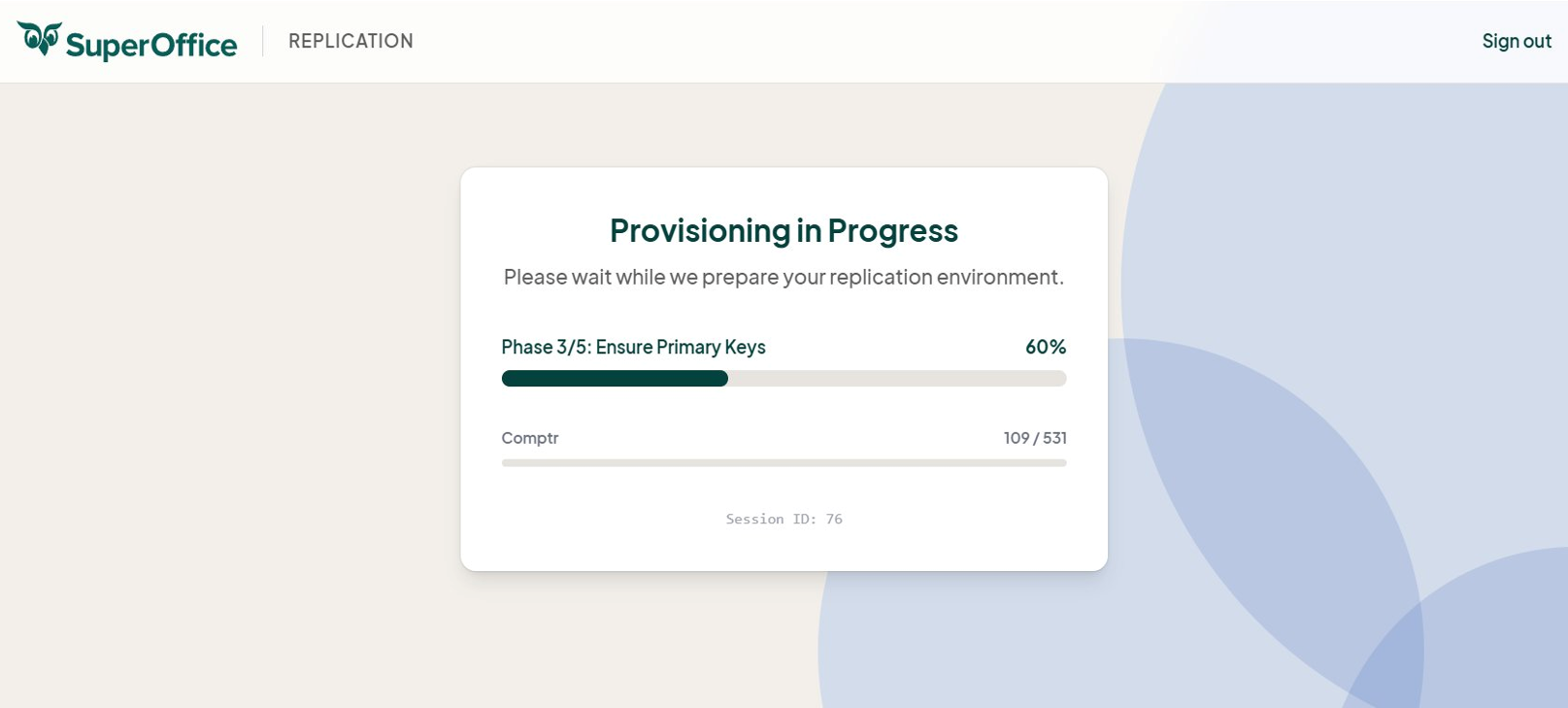

3.3 Wait for provisioning to complete

Provisioning runs through five phases. It typically takes a few minutes, depending on database size.

When you see the green Provisioning complete banner, the browser closes automatically and the terminal shows the results.

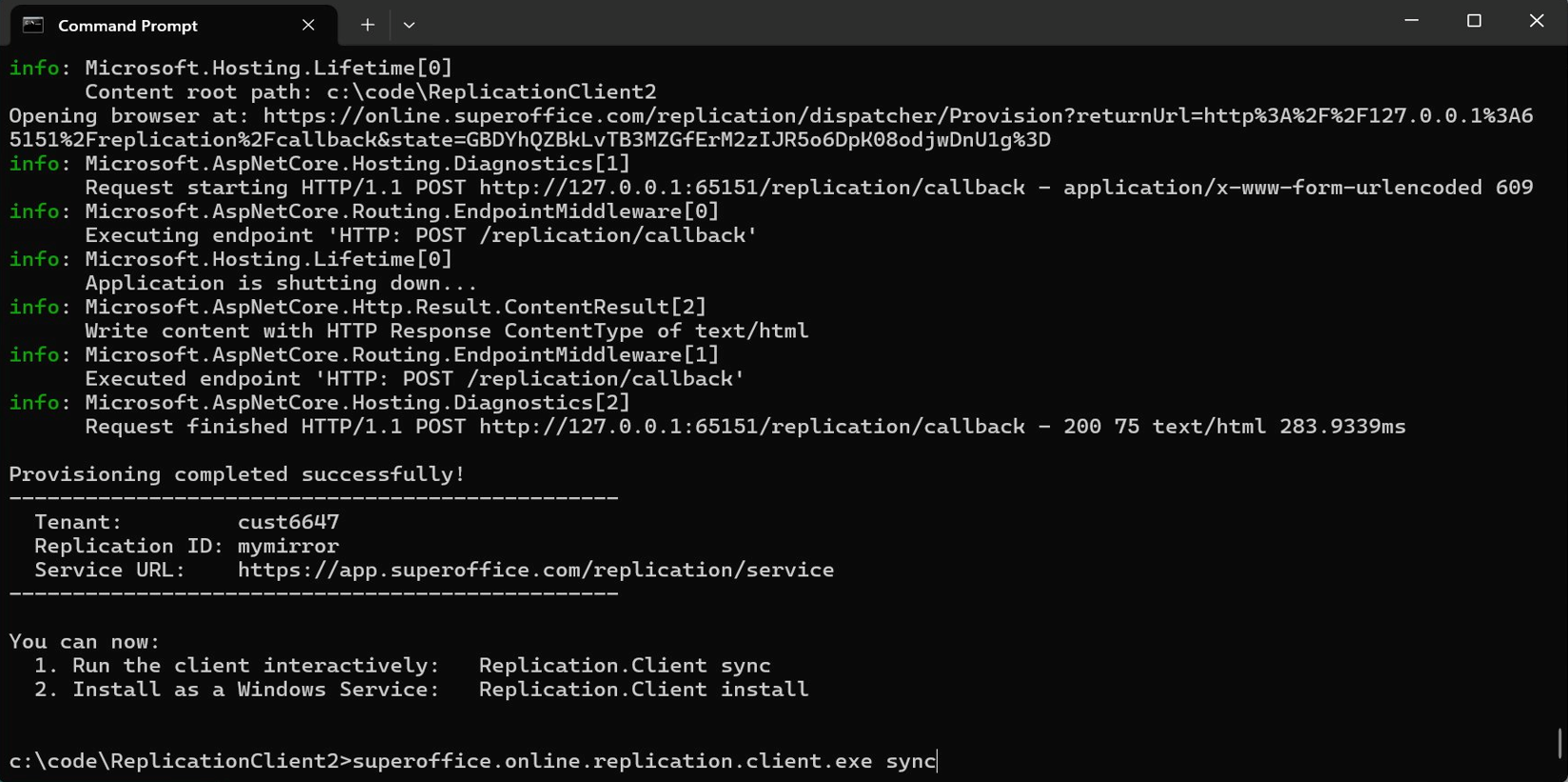

3.4 Confirm provisioning in the terminal

The terminal displays the provisioning summary:

Verify the output shows:

• Provisioning completed successfully!
• Your Tenant ID (for example, cust6647)
• The Replication ID (the session name you entered, lower-cased)
• The Service URL (for example, https://app.superoffice.com/replication/service)

The session, including the encrypted access and refresh tokens, is written to the _ReplicationState table in the replica database and is encrypted with Windows DPAPI (LocalMachine scope).

Step 4: Run a manual sync

Before installing as a Windows Service, run a manual sync to verify replication works and to perform the initial data load:

SuperOffice.Online.Replication.Client.exe sync

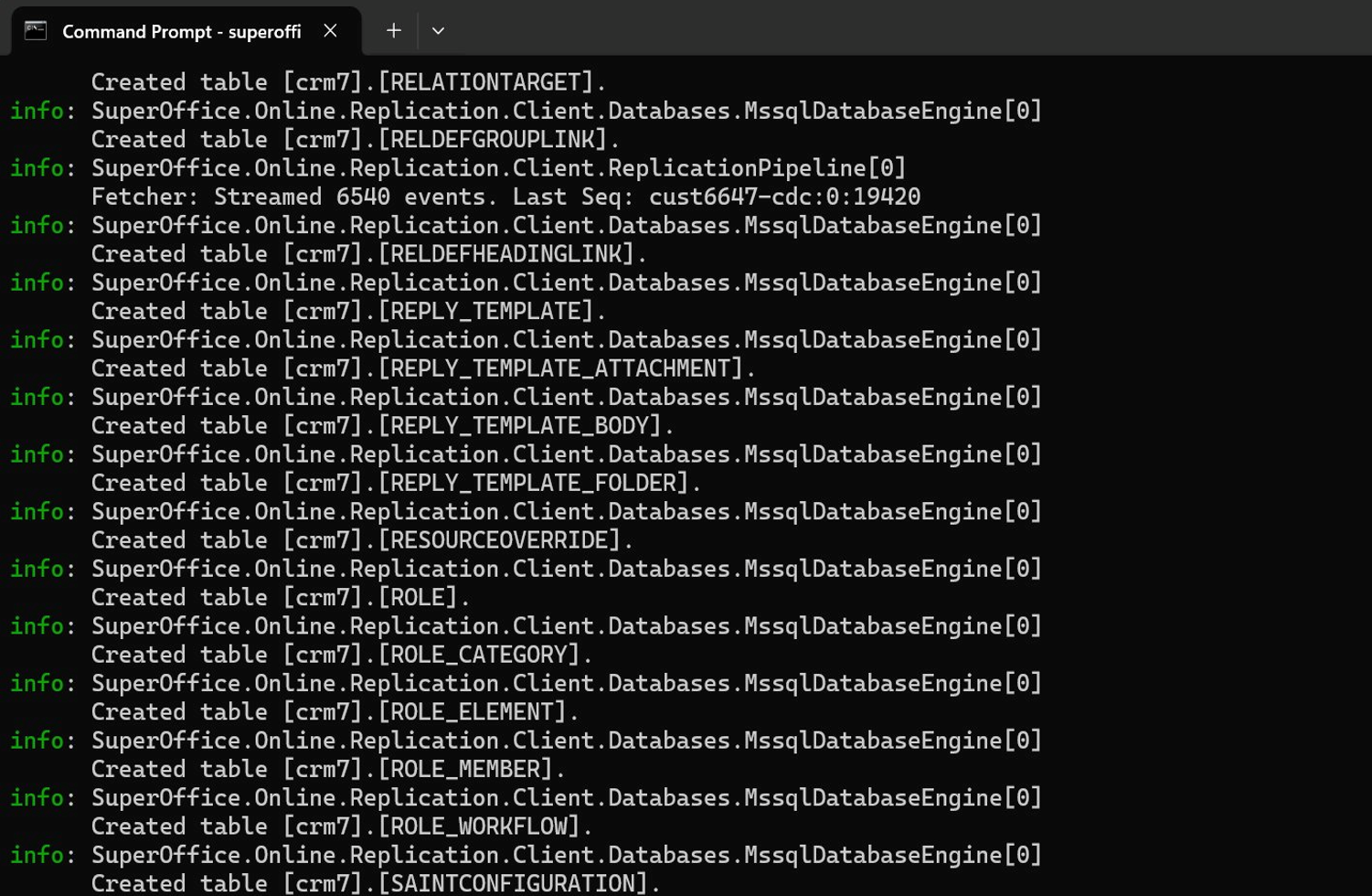

The terminal shows tables being created and populated in the replica database:

Wait until the sync completes. The initial sync can take several minutes for larger tenants. Subsequent syncs are near real-time (typically within seconds).

Tip

You can validate the configuration without syncing by running:

SuperOffice.Online.Replication.Client.exe validate

Step 5: Install as a Windows Service

Once the manual sync is verified, install the client as a Windows Service:

SuperOffice.Online.Replication.Client.exe install

The installer prints the exact sc start command. Run it to start the service:

sc start "SuperOfficeReplicationClient_<ReplicationId>"

The service name includes the Replication ID, so multiple instances (for example, Test and Production) can run side-by-side on the same host.

Tip

After starting the service, confirm activity in Windows Event Viewer under Windows Logs → Application, filtering for source SuperOfficeReplicationClient.

Step 6: Validate

Confirm the setup is working correctly:

• Open SQL Server Management Studio and check that tables exist in the expected schema (crm7 by default, or whatever you set as TablePrefix) of your replica database.
• Run row-count queries on key tables (for example, contact, person, sale) and compare with the source.
• Check that the _ReplicationState table exists — it stores the encrypted session tokens and progress offsets.
• Monitor the Windows Service status in Services (services.msc) — it should show Running.
• Make a change in SuperOffice Online and verify it appears in the replica within seconds.

Configuration reference

These keys live under the root of appsettings.json. The defaults suit most customers and are worth tuning only when network conditions or replica throughput become a bottleneck.

Setting	Purpose	Default
MaxBatchSize	Maximum events per HTTP fetch	10,000
MaxPollTimeSeconds	Long-poll window held open by the server	30
MaxBytes	Soft cap on response size	16 MB
CommitIntervalSeconds	How often progress is acknowledged to the cloud	60
SchemaUpdateIntervalSeconds	How often new tables are checked for	3,600
DatabaseBatchSize	Events per local database transaction	1,000–10,000
ReplicaDatabase.ConnectionString	SQL Server connection string for the replica	(required)
ReplicaDatabase.TablePrefix	Destination schema override (for example "dbo")	(empty — preserves source schema)

Command reference

Command	Purpose
...exe provision	Authenticate and download session configuration
...exe validate	Check configuration, DB connectivity and cloud reachability
...exe sync	Run replication interactively (foreground)
...exe install	Install as a Windows Service
...exe uninstall	Remove the Windows Service
...exe info	Show the current session: tenant, expiry, URLs
...exe reconnect	Re-authenticate when tokens are invalid
...exe update-schema	Force an immediate check for new tables
...exe resync-tables <table> ...	Re-snapshot specific tables (truncates them locally first). Example: resync-tables crm7.person crm7.project

Note

...exe is shorthand for SuperOffice.Online.Replication.Client.exe.

Logging and diagnostics

The client supports three logging sinks out of the box. They can be combined — enabling one does not disable the others.

Windows Event Log (default)

When run as a Windows Service, the client writes to Event Viewer → Windows Logs → Application under the source SuperOffice Replication Client. Log levels are controlled in appsettings.json:

{
  "Logging": {
    "EventLog": {
      "LogLevel": {
        "Default": "Information",
        "Microsoft": "Warning"
      }
    }
  }
}

Use Information for normal operation, Warning to reduce noise, and Debug only for short troubleshooting sessions — Debug is verbose.

File logging with NLog

If an nlog.config file is present next to the executable, the client picks it up automatically and routes logs through NLog. A minimal configuration:

<?xml version="1.0" encoding="utf-8" ?>
<nlog xmlns="http://www.nlog-project.org/schemas/NLog.xsd"
      xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance">
  <targets>
    <target name="logfile" xsi:type="File"
            fileName="logs/replication-${shortdate}.log"
            layout="${longdate}|${level:uppercase=true}|${logger}|${message} ${exception:format=tostring}" />
  </targets>
  <rules>
    <logger name="*" minlevel="Info" writeTo="logfile" />
  </rules>
</nlog>

Because this is standard NLog, you can use any NLog target: rolling files, syslog, ElasticSearch, Splunk, Seq, a database table, or an HTTP endpoint. Logger filters can scope verbosity per namespace — for example, raising SuperOffice.* to Debug while leaving everything else at Info. Async wrappers are available where logging volume becomes a performance concern.

Application Insights

If you run in Azure or already use Application Insights for observability, add a connection string to enable structured telemetry, dashboards, and alerting:

{
  "ApplicationInsights": {
    "ConnectionString": "InstrumentationKey=..."
  }
}

Operating considerations

A few points worth knowing:

• Versioning. The cloud may enforce a minimum client version. An out-of-date client stops replicating and logs a critical error. Plan a periodic upgrade window. Upgrades are a stop / replace binaries / start cycle and preserve appsettings.json, nlog.config, and the session state in the database.

• Multiple environments on one host. Test and Production clients can coexist by unzipping into separate folders, pointing each at its own replica database, and provisioning each independently. The installer derives unique service names from the session, so they do not collide.

• Monitoring from the SuperOffice side. Operation Center surfaces session health, last check-in time, and connector diagnostics. Customers do not see this UI directly, but it is the primary signal SuperOffice operations use when reacting to incidents.

• Lifecycle events. Database moves, restores, suspensions, and resumptions are handled by the standard tenant operations sagas on the SuperOffice side. They reset offsets and trigger a fresh snapshot, which the client absorbs as upserts. You do not normally need to intervene.

• Recovery from extended downtime. Change events are retained for 7 days. If the client is offline longer than that window, see Force re-sync.
