target_dimension Table (510)

•
Environment: onsite, online
• 2 minutes to read
 • 2 minutes to read

Defining target dimension

Fields

Name Description Type Null
target_dimension_id Primary key PK
entity_type Entity type for this set of targets (Sale, Project, Selection, Appointment...) Enum TargetEntityType ●
measurement_unit What to measure (Amount, Count, Profit... Enum TargetMeasurementUnit ●
assignment_level What level this dimension can be assigned to (Company, Group, Associate) Enum TargetAssignementLevel ●
dimension_list_field List that defines the dimensions for this target matrix (ex: Sale type, source, partner, business, udef or extrafield lists...) String(255) ●
selected_dimensions id's of the selected/wanted dimensions (what sale types or udef list lines that should be target dimensions) FKArray ●
registered Registered when UtcDateTime
registered_associate_id Registered by whom FK associate
updated Last updated when UtcDateTime
updated_associate_id Last updated by whom FK associate
updatedCount Number of updates made to this record UShort

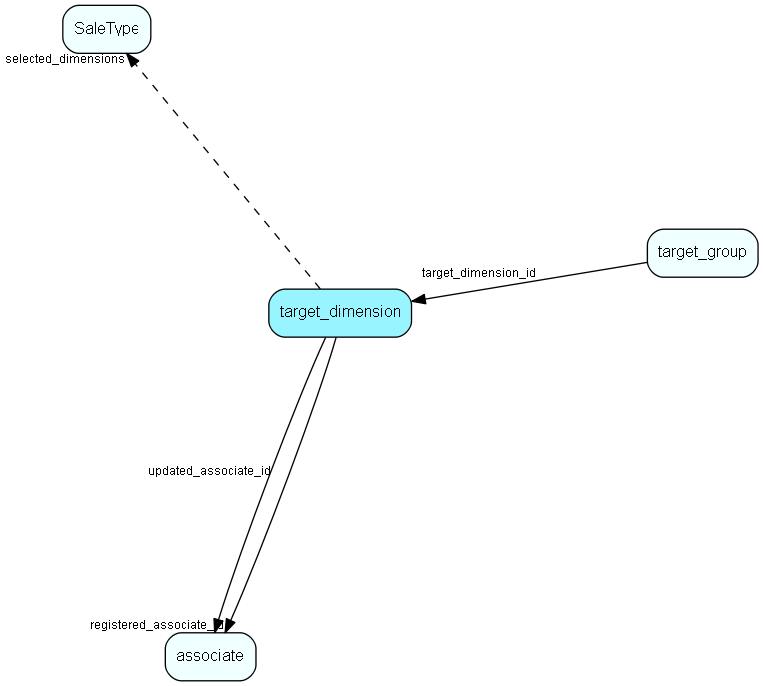

target_dimension table relationship diagram

Indexes

Fields Types Description
target_dimension_id PK Clustered, Unique
entity_type Enum Index
selected_dimensions FKArray Full text

Relationships

Table Description
associate Employees, resources and other users - except for External persons
SaleType Type of sale - large solution, incremental, whatever fits the organization
target_group Info about a set of (sales, project, selection...) targets

Replication Flags

  • None

Security Flags

  • Sentry controls access to items in this table using user's Role and data rights matrix.
