satellite Table (42)
•
Environment: onsite, online
Some tooltip text!
• 1 minute to read
• 1 minute to read
Definition of Satellites
Fields
| Name | Description | Type | Null |
|---|---|---|---|
| satellite_id | Primary key | PK | |
| area_id | Area this satellite is based on (mandatory != 0) | FK area | |
| contact_id | Contact card that owns this satellite | FK contact | |
| encryptedComm | Use encryption for this Satellite? | UShort | ● |
| DSN | Data source name last used for this satellite | String(254) | |
| registered | Registered when | UtcDateTime | |
| registered_associate_id | Registered by whom | FK associate | |
| updated | Last updated when | UtcDateTime | |
| updated_associate_id | Last updated by whom | FK associate | |
| updatedCount | Number of updates made to this record | UShort |
Indexes
| Fields | Types | Description |
|---|---|---|
| satellite_id | PK | Clustered, Unique |

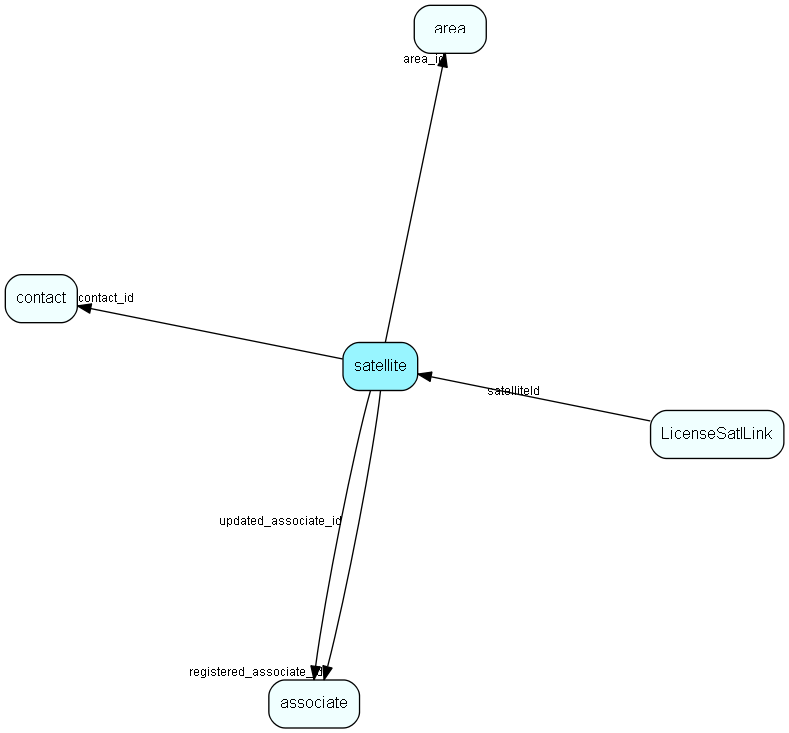

Relationships
| Table | Description |
|---|---|
| area | Definition of an Area (database subset for satellite and travel) |
| associate | Employees, resources and other users - except for External persons |
| contact | Companies and Organizations. |
| LicenseSatlLink | Link between License and Satellite, for per-database licenses |
Replication Flags
- Replicate changes DOWN from central to satellites and travellers.
- Copy to satellite and travel prototypes.
Security Flags
- Sentry controls access to items in this table using user's Role and data rights matrix.
