ConnectionConfigField Table (421)

• 1 minute to read
 • 1 minute to read

Configuration data for Erp and Quote Connections

Fields

Name Description Type Null
connectionconfigfield_id Primary key PK
ErpConnectionId Erp connection, if this row belongs to an ERP Connector FK ErpConnection ●
QuoteConnectionId Quote connection, if this row belongs to a Quote Connector FK QuoteConnection ●
FieldKey The key that identifies the field, taken from the connector's metadata String(254) ●
FieldValue The field value, formatted for transport as a string using CultureDataFormatter String(1023) ●
registered Registered when UtcDateTime
registered_associate_id Registered by whom FK associate
updated Last updated when UtcDateTime
updated_associate_id Last updated by whom FK associate
updatedCount Number of updates made to this record UShort

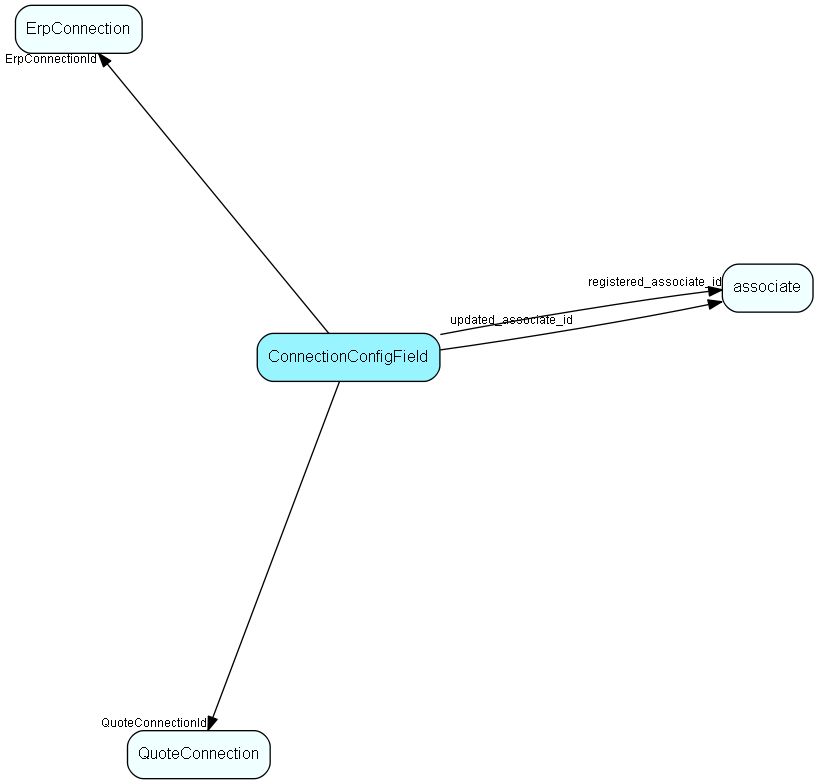

ConnectionConfigField table relationship diagram

Indexes

Fields Types Description
connectionconfigfield_id PK Clustered, Unique
ErpConnectionId FK Index
QuoteConnectionId FK Index

Relationships

Table Description
associate Employees, resources and other users - except for External persons
ErpConnection One connection to an ERP connector, specifying Client and other required information
QuoteConnection Primary key in the CRM database. Definition of a connection to an external system, for the Quote system.

Replication Flags

  • None

Security Flags

  • No access control via user's Role.
