BinaryObject Table (205)
•
Environment: onsite, online
Some tooltip text!
• 3 minutes to read
• 3 minutes to read
Binary objects, i.e., blobs. Used for images, documents, SuperOffice inbox mail and other large binary items
Fields
| Name | Description | Type | Null |
|---|---|---|---|
| BinaryObject_id | Primary key | PK | |
| conceptualType | The type, for instance PHOTO, PERSONPHOTO, or whatever, that is descriptive of what kind of image or data this is | String(254) | |
| mimeType | Mime type, describing the technical type (image/jpeg) of the data | String(254) | ● |
| description | A description that is entered by the user, and visible to the user | String(254) | ● |
| originalSize | Original size of the binary data, before encryption and/or zipping. This is what the ultimate client will get | UInt | |
| blobSize | The length, in bytes, of the binary data AS STORED after any encryption and/or zipping. Important to get right, since some databases will not tell us just based on the blob itself! | UInt | |
| isZipped | Has the data been zipped (support for this will come in HDB) | Bool | |
| isEncrypted | Has the data been encrypted (support for this will come in HDB) | Bool | |
| extraInfo | Extra information, spare field, can be used for anything that makes sense. Should not refer to any particular context, that is something for the BinaryObjectLInk | String(254) | ● |
| binaryData | The binary data itself. Length is limited by the database, generally 1GB seems to be reliably available. Beyond that is database dependent. | Blob | ● |
| registered | Registered when | UtcDateTime | |
| registered_associate_id | Registered by whom | FK associate | |
| updated | Last updated when | UtcDateTime | |
| updated_associate_id | Last updated by whom | FK associate | |
| updatedCount | Number of updates made to this record | UShort |
Indexes
| Fields | Types | Description |
|---|---|---|
| BinaryObject_id | PK | Clustered, Unique |
| conceptualType | String(254) | Index |
| mimeType | String(254) | Index |
| extraInfo | String(254) | Index |

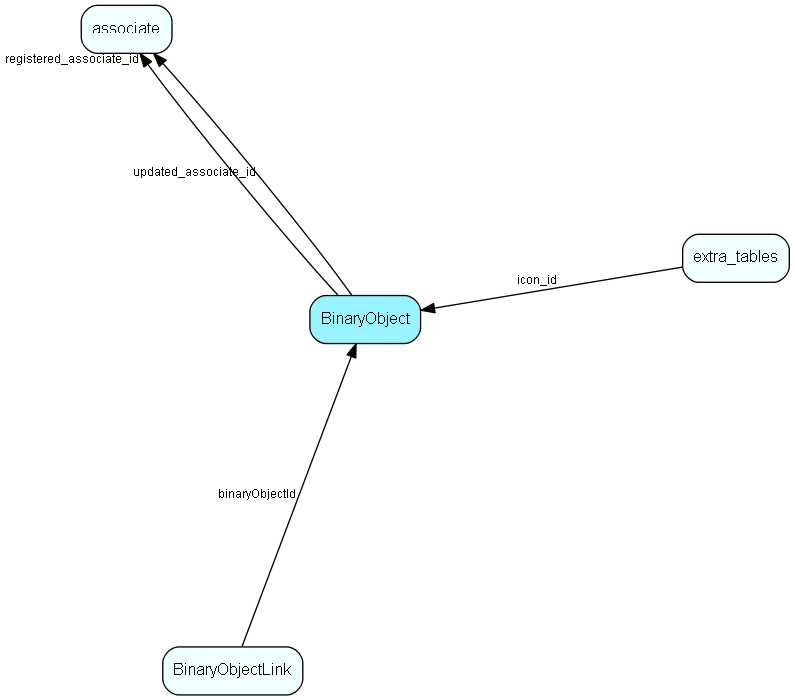

Relationships
| Table | Description |
|---|---|
| associate | Employees, resources and other users - except for External persons |
| BinaryObjectLink | Link table, connects a BinaryObject with one or more owners |
| extra_tables | This table contains entries for the extra tables in the system. |
Replication Flags
- Replicate changes DOWN from central to satellites and travellers.
- Replicate changes UP from satellites and travellers back to central.
- Copy to satellite and travel prototypes.
Security Flags
- Sentry controls access to items in this table using user's Role and data rights matrix.
