AudienceLayout Table (234)
•
Environment: onsite, online
Some tooltip text!
• 1 minute to read
• 1 minute to read
One layout (of webparts and other stuff) for an audience instance
Fields
| Name | Description | Type | Null |
|---|---|---|---|
| AudienceLayout_id | Primary key | PK | |
| instanceName | The name of the installed instance of Audience - must match the web.config file | String(239) | |
| instanceLayout | The layout, as a serialized string via the Provider architecture | String(2047) | |
| registered | Registered when | UtcDateTime | |
| registered_associate_id | Registered by whom | FK associate | |
| updated | Last updated when | UtcDateTime | |
| updated_associate_id | Last updated by whom | FK associate | |
| updatedCount | Number of updates made to this record | UShort |
Indexes
| Fields | Types | Description |
|---|---|---|
| AudienceLayout_id | PK | Clustered, Unique |
| instanceName | String(239) | Unique |

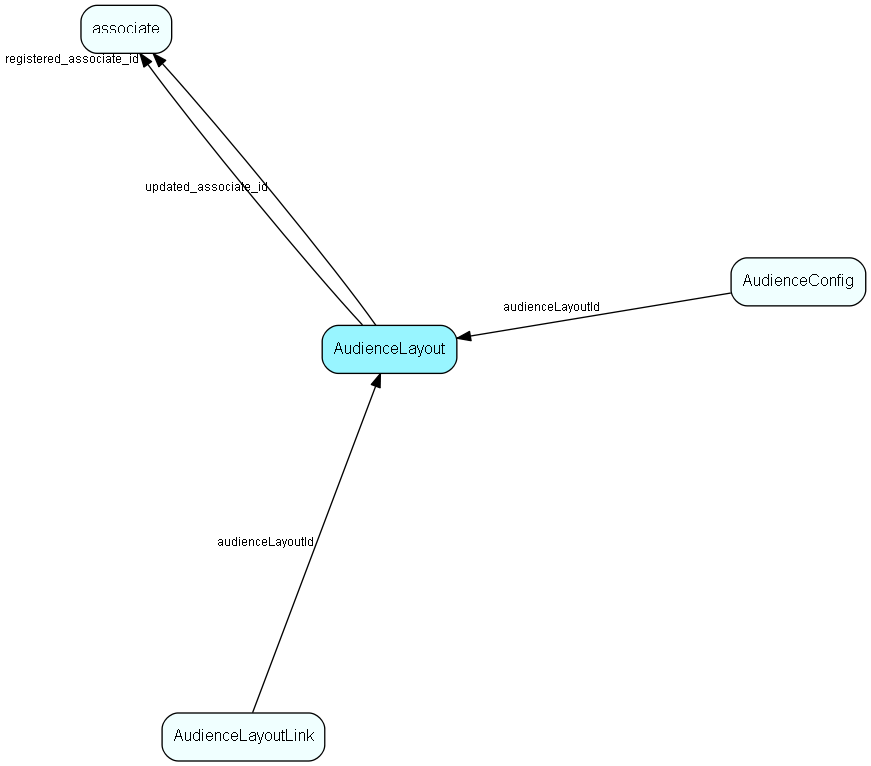

Relationships
| Table | Description |
|---|---|
| associate | Employees, resources and other users - except for External persons |
| AudienceConfig | Configuration data for Audience core and webparts |
| AudienceLayoutLink | Link between an audience layout and some target grouping table - might be Role or Category |
Replication Flags
- None
Security Flags
- No access control via user's Role.
