The database has quite a few tables in it. About 456 tables in total. Nothing like a Siebel or SAP system, but still enough to be confusing at first look.

The main objects in the system are:

Activities (Appointment table) - including the date and time the activity happened
Companies (Contact table)
Projects
Users (Associate table)
Tickets

In the database, these relationships are expressed using the following set of tables and fields.

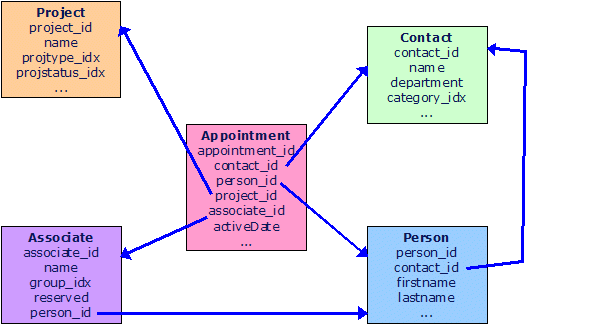

table structure

This gives us the following join conditions we can use:

Appointment.contact_id = Contact.contact_id
Appointment.person_id = Person.person_id
Appointment.project_id = Project.project_id
Appointment.associate_id = Associate.associate_id
Person.contact_id = Contact.contact_id
Associate.person_id = Person.person_id
Ticket.cust_id = person.person_id

The appointment table contains foreign keys to all the other important tables, plus a date field (ActiveDate).

Because the people working for your customers are often important too, we keep track of them as well. We break 3rd normal form (a database design principle) by storing both the contact_id and the person_id in the appointment to make the database more efficient.

Also, in the future, we may break the Person-contact relation, allowing consumers to be registered: person records without a corresponding company.

Whenever a user enters an appointment, it will have a non-zero associate_id, an activeDate, and one of the other two IDs set (contact, or project). The person ID can be zero even if the user has set a contact (selected a company, but no person).
